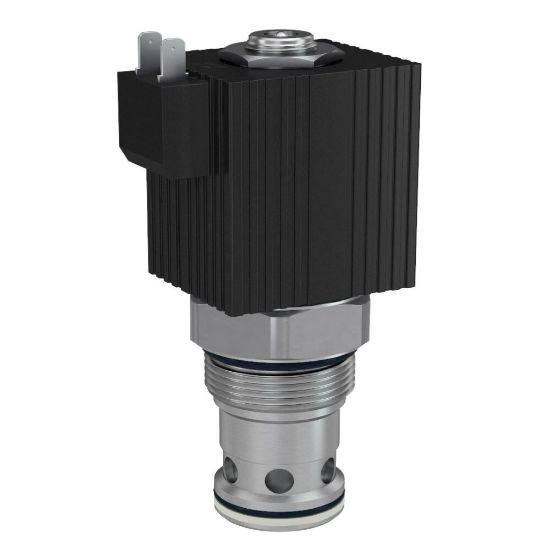

DF201C60V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU DF201C60V

$660.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Fluorocarbon	Configuration	Normally Closed
Flow Rate	60 GAL/MIN, 227 L/MIN	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Nut Tightening Torque	3 lb-ft
Configuration	Normally Closed	Maximum Operating Pressure	210 bar
Operating Temperature	-26 to +204 °C	Actuation Type	Electrical
Variation of Opening Point	20%-30% of Input Signal	Flow Rate	60 Gal/min
Frequency	100-400 Hz	Coil Type	1" DS Coil High Watt
Connection Type	N/A	Operation Type	Solenoid operated
Flow Rate Accuracy	N/A	Weight	0.34 kg
Body Material	N/A	Installation Torque	113 Nm
Division	Hydraulic Systems Division	Maximum Inlet Pressure Rating	3000 psi
Wire Mesh Screen Included	No	Function	Proportional Flow Control/Regulator
Connection Size	N/A	Division	Hydraulic Cartridge Systems Division
Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min	Seal Material	Fluorocarbon
Maximum Flow Rate	227.0 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Hysteresis	4%	Minimum Pressure Differential	N/A psi
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+204 °C
Override Functionality	N/A	Minimum Operating Temperature	-15 °F
Cavity Size	C20-2	Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A
Power Consumption	42 W	Variation of Closing Point	N/A
Flow Direction	Side to Nose (2 - 1)
