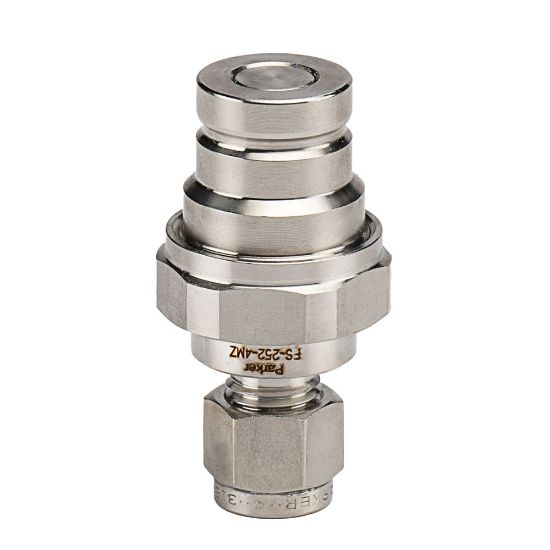

FS-252-4MZ - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU FS-252-4MZ

$221.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female CPI Flareless Tube Fitting
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	-4	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Valve Type	Non-spill
Seal Material	Fluorocarbon	Maximum Operating Pressure	2000 psi
Body Material	Stainless Steel 316	Flow Rate	3 Gal/min
Application	Fluid Transfer	Product Type	Push to Connect
Minimum Operating Temperature	-15 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
