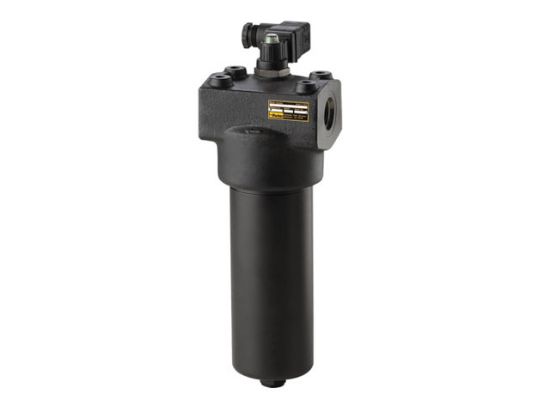

WPF310QEVPKY161 - WPF3 Series High Pressure Filter

WPF3 Series Hydraulic and Lube Oil High Pressure Filter

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU WPF310QEVPKY161

$787.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
UOM	EA	Port	1 Flange face - SAE Code 62
Operating Temperature	-15F to 250F (-26C to 121C)	Element Length	Single
Nominal Filter Rating	10 micron	Nominal Flow Rating	45 GPM (171 LPM)
Seals	Fluorocarbon	Indicator Type	Plugged Indicator
Bypass	50 PSI (3.5 bar)	Max Pressure - Non-Fatigue MAOP	7000 psi (483 bar)
Replacement Element	941037Q	Options	No Option
Max Pressure - Fatigue MAOP	6000 psi (414 bar)	Parker Group	Filtration
Parker Division	Hydraulic Filter	Nominal Filter Micron Rating	10 micron
Element Length	Single	Filter Media Type	Ecoglass III
Options	No Option	Filter Media Code	10QE
Operating Temperature	-15F to 250F (-26C to 121C)	Indicator Type	Plugged Indicator
Bypass	50 PSI (3.5 bar)	Seals	Fluorocarbon
Filter Type	High Pressure Filter	Nominal Flow Rating	45 GPM (171 LPM)
Max Pressure - Non-Fatigue MAOP	7000 PSI (483 bar)	Max Pressure - Fatigue MAOP	6000 PSI (414 bar)
Series	WPF3	Port	1 Flange face - SAE Code 62
Port Type	Flange face - SAE Code 62

Product resources

WPF Series (PDF)
