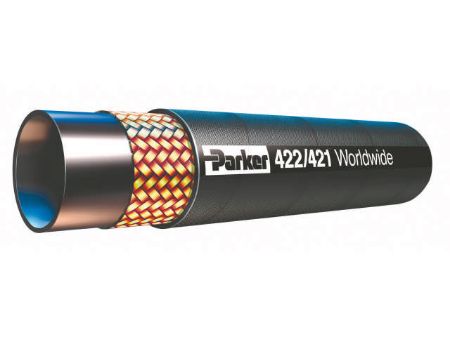

Worldwide Hydraulic Industry Standard Hose 575-3250 PSI – 422 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 422 hose is a worldwide hydraulic industry standard hose manufactured to strict international specifications to offer customers consistency of performance combined with improved availability anywhere in the world. The 422 hose is designed to meet global industry standards in order to meet the requirements of any job around the world. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Utility Equipment

• Machine Tool

• Waste & Refuse

• Material Handling

Features/Benefits:

• One-wire braid hose design manufactured to international specifications

• Increased working pressures for improved reliability and expanded applications versus standard SAE 100R1

• Synthetic rubber inner tube for greater fluid compatibility and bio-oil resistance

• 575-3250 PSI working pressure in different sizes

Industry Standards:

• ISO 1436-1 Type 1SN / SAE J517 100R1AT / SAE J1942 / EN 853 Type 1SN

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

• 42 series fittings

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Compatible Fitting	Maximum Operating Temperature	Division	Hose Inner Tube Material	Media	Cover Material	Minimum Operating Temperature	Minimum Bend Radius	Hose Reinforcement Material	Application	Specifications Met	Outside Diameter	Nominal Hose Inside Diameter	Inside Diameter	Maximum Operating Pressure	Weight	Pkg Qty	Pkg Qty/UOM	Mating Fitting Series	Material	Working Pressure	Inner Diameter	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Working Pressure Range	Application	Hose Pressure Range	Hose Category	Distinct Properties	Series	Mating End Fitting Series
422-12	Backordered	1102 in stock	$17.19/foot	FT	FT	-12	43 Series	212 °F	Hose Products Division	Synthetic Rubber	Lubricants	Synthetic Rubber	-40 °F	9-1/2 inch	1 Braid of Steel Wire	Lubricating Oils	EN 853, Type 1SN	1.090 inch	19 mm	19 mm	1525 psi	0.63 kg/m	200	200 FT	43, 42	Rubber	1525 PSI (110 bar)	0.75 Inch	Fluid Connector	Inch	Hose Products	0.75 Inch	Inch	Rubber	1000 to 1999 PSI (69 to 138 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422	43, 42
422-16	Backordered	724 in stock	$21.91/foot	FT	FT	-16	42 Series	100 °C	Hose Products Division	Synthetic Rubber	Petroleum Hydraulic Fluids	Synthetic Rubber	-40 °F	300 mm	1 Braid of Steel Wire	Lubricating Oils	USCG HF	36 mm	25 mm	25 mm	8.8 MPa	0.63 lb/ft	135	135 FT	43, 42	Rubber	1275 PSI (90 bar)	1 Inch	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Rubber	1000 to 1999 PSI (69 to 138 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422	43, 42
422-20	37 in stock	1549 in stock	$34.23/foot	FT	FT	-20	43 Series	212 °F	Hose Products Division	Synthetic Rubber	Lubricants	Synthetic Rubber	-40 °F	16-1/2 inch	1 Braid of Steel Wire	Petroleum Base Hydraulic Fluids	SAE 100R1, Type AT	1.790 inch	31 mm	1-1/4 inch	900 psi	1.19 kg/m	50	50 FT		Rubber	900 PSI (60 bar)	1.25 Inch	Fluid Connector	Inch	Hose Products	1.25 Inch	Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422
422-24	65 in stock	885 in stock	$32.99/foot	FT	FT	-24	43 Series	100 °C	Hose Products Division	Synthetic Rubber	Lubricants	Synthetic Rubber	-40 °F	20 inch	1 Braid of Steel Wire	Petroleum Base Hydraulic Fluids	DNV	51 mm	38 mm	38 mm	725 psi	1 lb/ft	50	50 FT		Rubber	725 PSI (50 bar)	1.5 Inch	Fluid Connector	Inch	Hose Products	1.5 Inch	Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422
422-32	25 in stock	929 in stock	$42.90/foot	FT	FT	-32	43 Series	100 °C	Hose Products Division	Synthetic Rubber	Lubricants	Synthetic Rubber	-40 °F	630 mm	1 Braid of Steel Wire	Petroleum Base Hydraulic Fluids	ABS	2.540 inch	51 mm	2 inch	4 MPa	2.24 kg/m	50	50 FT		Rubber	275 PSI (19 bar)	2 Inch	Fluid Connector	Inch	Hose Products	2 Inch	Inch	Rubber	250 to 499 PSI (17 to 34 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422
422-5	Backordered	Backordered	$7.49/foot	FT	FT	-5	42 Series	100 °C	Hose Products Division	Synthetic Rubber	Petroleum Hydraulic Fluids	Synthetic Rubber	-40 °C	115 mm	1 Braid of Steel Wire	Petroleum Base Hydraulic Fluids	ISO 1436, Type 1SN	15 mm	6 mm	5/16 inch	21.5 MPa	0.27 kg/m	300	300 FT	43, 42	Rubber	3125 PSI (220 bar)	0.313 Inch	Fluid Connector	Inch	Hose Products	0.313 Inch	Inch	Rubber	3000 to 3999 PSI (207 to 276 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422	43, 42
422-6	Backordered	3242 in stock	$9.19/foot	FT	FT	-6	43 Series	212 °F	Hose Products Division	Synthetic Rubber	Lubricants	Synthetic Rubber	-40 °F	5 inch	1 Braid of Steel Wire	Lubricating Oils	DNV	17 mm	10 mm	10 mm	18 MPa	0.34 kg/m	300	300 FT	43, 42	Rubber	2600 PSI (180 bar)	0.375 Inch	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422	43, 42
422-8	Backordered	2489 in stock	$10.18/foot	FT	FT	-8	43 Series	100 °C	Hose Products Division	Synthetic Rubber	Petroleum Hydraulic Fluids	Synthetic Rubber	-40 °C	7 inch	1 Braid of Steel Wire	Lubricating Oils	ABS	0.810 inch	12 mm	12.5 mm	2325 psi	0.29 lb/ft	300	300 FT	43, 42	Rubber	2325 PSI (160 bar)	0.5 Inch	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	Worldwide DIN	422	43, 42
