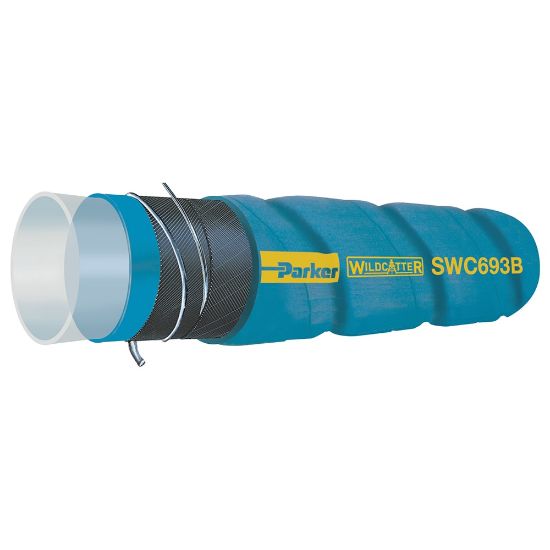

SWC693B-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	382 in stock

SKU SWC693B-2000

$32.13/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Hose I.D. (inch)	2	Weight	1.39 kg/m
Outside Diameter	2.540 inch	Maximum Operating Pressure	250 psi
Vacuum Pressure Rating	29 Inch-Hg	Inside Diameter	50.8 mm
Division	Hose Products Division	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Compatible Fitting	n/a	Size	-32
Maximum Operating Temperature	82 °C	Media	Acids
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	51 mm
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Cover Structure	Corrugated	Application	Oilfield
Nominal Hose Inside Diameter	50 mm
