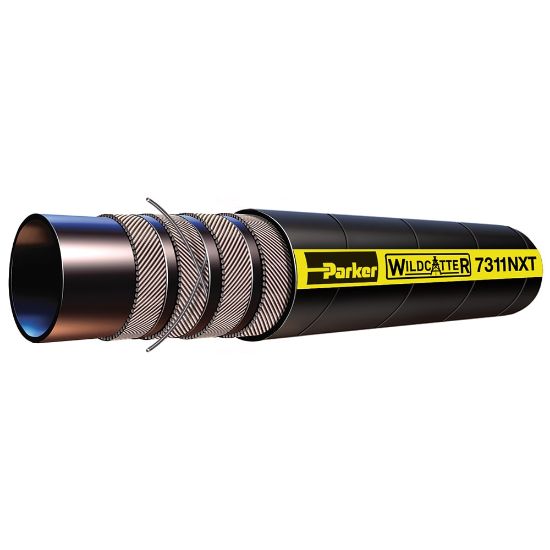

7311NXT-4000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	109 in stock

SKU 7311NXT-4000

$73.14/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4
Hose Cover Material	Nitrile blend/UHMPE; wrapped finish	Media	Fuels - Check fuel type with our catalogue chart.
Design Factor	4:1	Maximum Operating Temperature	200 °F
Hose Inner Tube Material	Black	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	n/a	Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires
Specifications Met	n/a	Cover Material	Nitrile Blend
Inside Diameter	101.6 mm	Maximum Operating Pressure	400 psi
Weight	1.26 kg/ft	Outside Diameter	122.7 mm
Package Type	Coil	Application	Oilfield
Length per Package	100 ft	Division	Hose Products Division
Vacuum Pressure Rating	n/a	Cover Color	Black

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
