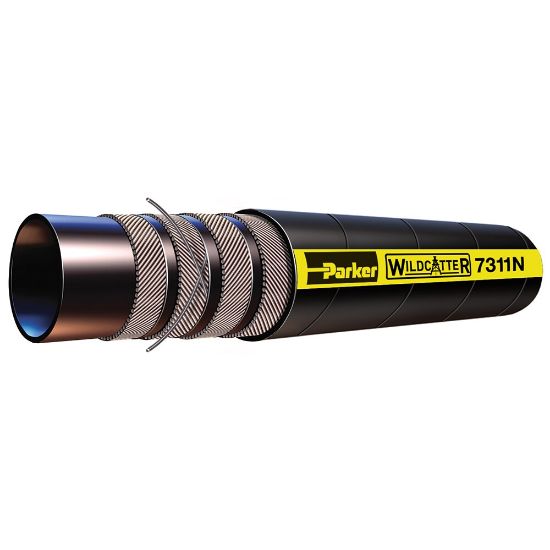

7311N-1500 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 7311N-1500

$21.47/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1 1/2
Hose Cover Material	Nitrile blend; wrapped finish	Maximum Operating Pressure	400 psi
Inside Diameter	38.1 mm	Outside Diameter	2 inch
Package Type	Coil	Specifications Met	n/a
Application	Oilfield	Weight	0.344 kg/ft
Vacuum Pressure Rating	n/a	Cover Color	Black
Media	Wet Abrasive Powders (Slurry)	Design Factor	4:1
Hose Inner Tube Material	Nitrile	Division	Hose Products Division
Length per Package	100 ft	Maximum Operating Temperature	200 °F
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	n/a
Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires	Cover Material	Nitrile Blend

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
