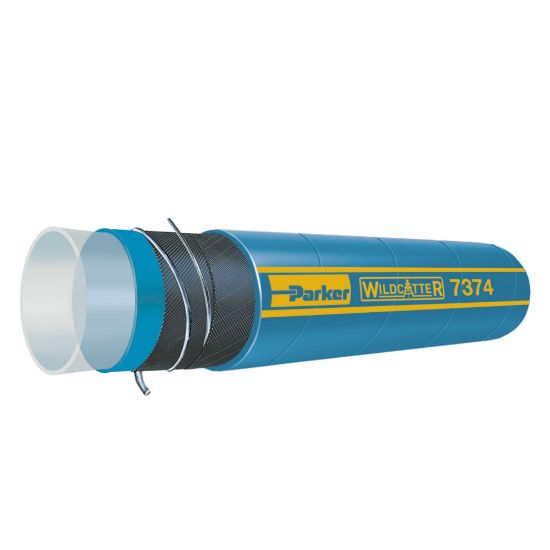

7374-1000 - WILDCATTER® Oilfield High Pressure Chemical Hose, Series 7374

Wildcatter Oilfield High Pressure Chemical Hose is designed for suction, discharge and transfer of acids, chemicals and solvents in applications to 180°F and 600 psi, Series 7374

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	424 in stock

SKU 7374-1000

$58.50/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	600	Division	Hose Products Division
Application	Oilfield	Media	Acids
Maximum Operating Pressure	600 psi	Maximum Operating Temperature	180 °F
Minimum Operating Temperature	-40 °C	Specifications Met	n/a
Weight	1.01 kg/m	Outside Diameter	1.580 inch
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Inside Diameter	1 inch
Compatible Fitting	n/a	Minimum Bend Radius	101.6 mm
Vacuum Pressure Rating	Full	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Cover Color	Blue
Design Factor	4:1	Package Type	Coil
Length per Package	100 ft	Cover Structure	Wrapped

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
