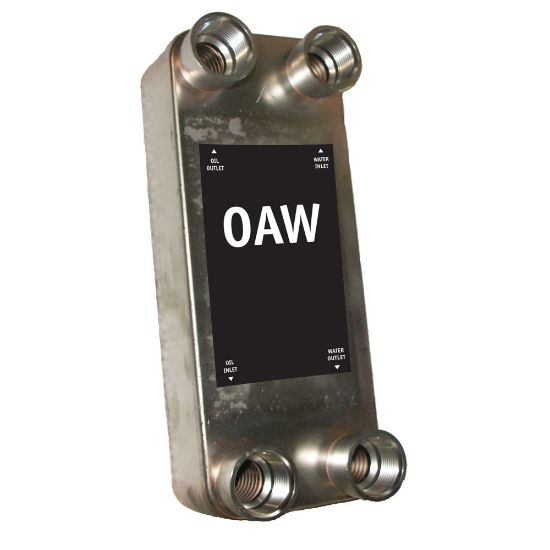

OAW 61-60 - Water Oil Cooler - Brazed Plate OAW Series - (Americas)

The OAW Series of water oil coolers offers rugged, brazed plate construction; providing the highest performance and most compact size available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU OAW 61-60

$5,538.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	OAW-61-60
Weight	12.3 kg	Maximum Flow Rate	70 Gal/min
For Fluid Type	Water Side: Demineralized, Untreated Water. For sea water or chemically treated water, consult factory	Height	6.8 inch
Width	122 mm	Division	Accumulator and Cooler Division
Length	20.8 inch	Port Size	1-1/4
Operating Temperature	-320 to 435 °F	Connection Thread Size	1-5/8"-12 inch
Maximum Operating Pressure	31.0 bar	Maximum Cooling Capacity	152 HP
Materials of Construction	Stainless Steel AISI 316

Product resources

Literature and Reference Materials

Industrial and Mobile Coolers Catalog - HY10-1700 (PDF)
