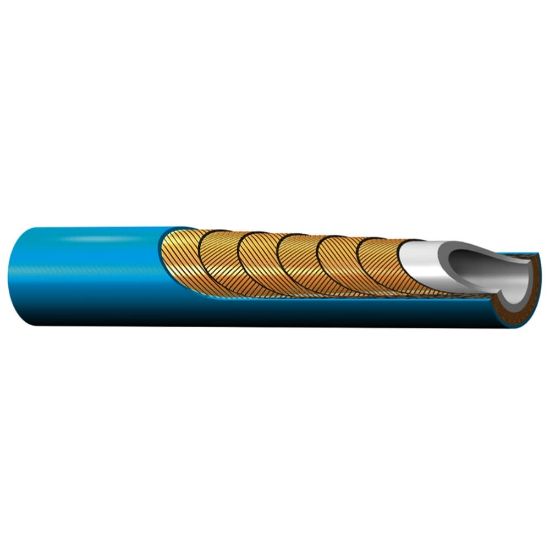

2648N-16V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2648N-16V32

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	21,750	Design Factor	2.5:1
Media	Chemicals	Cover Material	Polyamide (PA)
Division	Parflex Division	Hose Inner Tube Material	Polyamide (PA)
Size	-16	Maximum Operating Temperature	158 °F
Compatible Fitting	CX Series	Maximum Operating Pressure	1500 bar
Weight	3.10 kg/m	Inside Diameter	1 inch
Outside Diameter	40.8 mm	Minimum Operating Temperature	14 °F
Minimum Bend Radius	400 mm	Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire
Specifications Met	DIN 1829-2	Application	Industrial Cleaning

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
