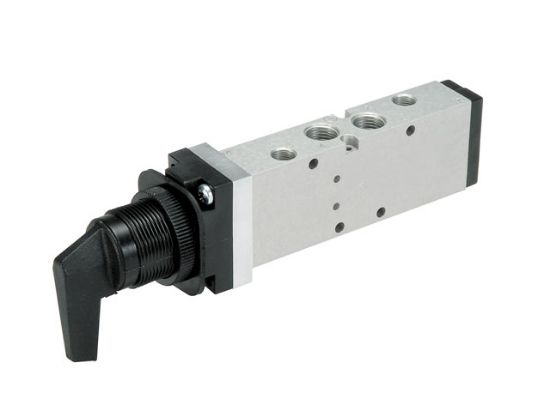

P2LBX312JJ - Viking Xtreme Series Manual/Mechanical Valve - 3-way and 4-way 2-position Twist Handle

Viking Xtreme Series Manual/Mechanical Valve - 3-way and 4-way 2-position Twist Handle

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU P2LBX312JJ

$197.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	CV Factor	1.3
Operator Type Detail	Twist Handle	Port	1/4 BSPP
Pkg Qty	1	Offset Return Type	Detent
UOM	EA	Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)
Operator Type Detail	Twist Handle	Series	Viking Xtreme
Parker Group	Automation	Port	1/4 BSPP
CV Factor	1.3	Valve Positions	2-position
Port Inch/BSP	BSPP	Operator Type	Manual/Mechanical
Valve Passages	3-way	Offset Return Type	Detent
Parker Division	Pneumatic	Operating Temperature	-40°F to 140°F (-40°C to 60°C)
