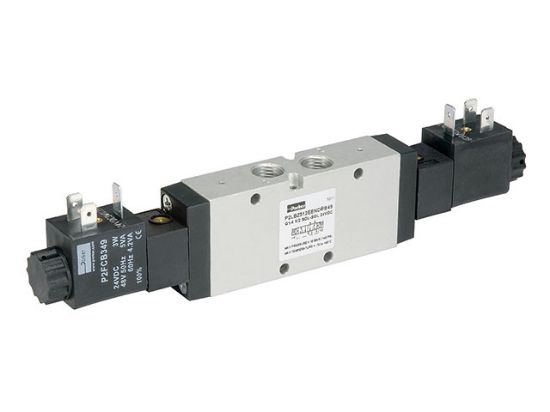

P2LBZ592EENDBB49 - Viking Lite Series Double Solenoid 4-way 2-position Valve

Double Solenoid, 4-way, 2-position

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	34 in stock

SKU P2LBZ592EENDBB49

$124.31/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Solenoid Voltage	24VDC
UOM	EA	Pilot Supply	Internal
CV Factor	1.5	Pkg Qty	1
Operator Type Detail	Double	Port	1/4 NPT
Override Type	Non-locking	Parker Group	Automation
Parker Division	Pneumatic	Port	1/4 NPT
Port Inch/BSP	NPT	Pneumatic Valve Type	Inline Valve
Valve Passages	4-way	Valve Positions	2-position
Series	Viking Lite	Trade Name	Viking Lite
Operator Type	Solenoid	Operator Type Detail	Double
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	1.5
Operating Temperature	14°F to 122°F (-10°C to 50°C)	Supply Pressure Range	22 to 145 PSIG (1.5 to 10 bar)
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
