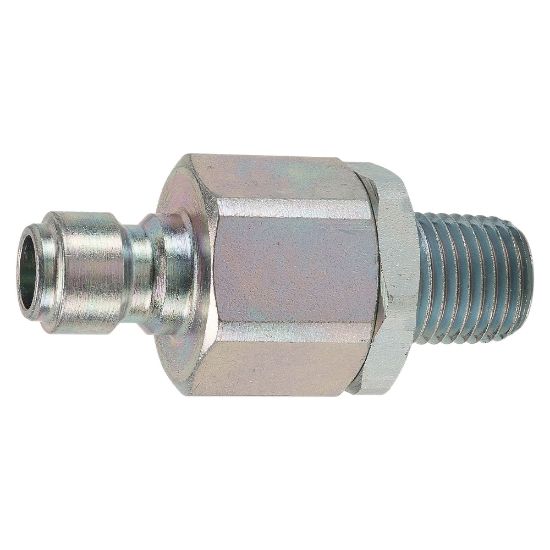

VEAN4-4MV - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU VEAN4-4MV

$42.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Material	Steel	Maximum Operating Pressure	3000
Connection Thread Size (inch)	1/4 - 18	Connection Type	Male NPTF
Body Size (inch)	1/4	Valve Type	Poppet
Division	Quick Coupling Division	Product Type	Manual Connect
Seal Material	Flourocarbon	Maximum Operating Temperature	400 °F
Application	Medium Pressure Hydraulics	Minimum Operating Temperature	-15 °F
Plating Type	Zinc with Clear Trivalent Chromate	Hex Size	0.88 inch
Vacuum Pressure Rating	1/4 Inch-Hg	Body Material	Steel
