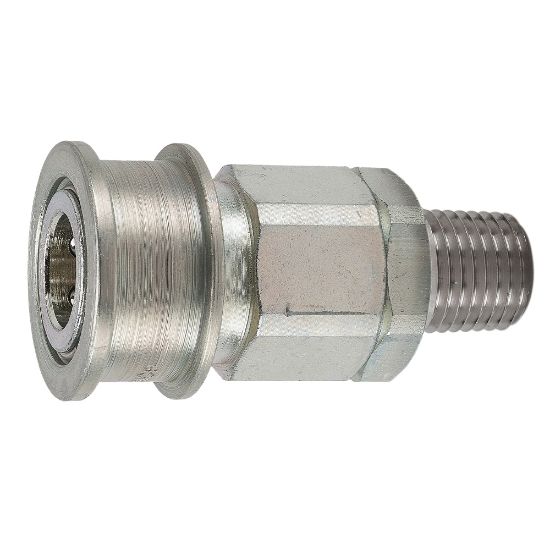

VEAC4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU VEAC4-4M

$32.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Coupling Half	Female Coupler	Body Material	Steel
Maximum Operating Pressure	3000	Connection Thread Size (inch)	1/4 - 18
Connection Type	Male NPTF	Application	Vacuum and medium pressure hydraulics
Valve Type	Poppet	Body Material	Steel
Vacuum Pressure Rating	29.7 Inch-Hg	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Hex Size	0.88 inch
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
