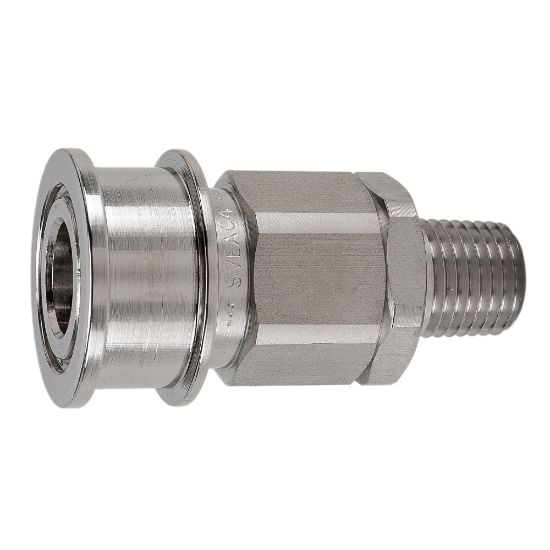

SVEAC8-8M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU SVEAC8-8M

$280.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Body Material	316 Stainless Steel	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14	Maximum Operating Pressure	3000
Connection Type	Male NPSF	Application	Vacuum and medium pressure hydraulics
Vacuum Pressure Rating	29.7 Inch-Hg	Body Material	Stainless Steel
Valve Type	Poppet	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Plating Type	na	Product Type	Manual Connect
Hex Size	1.19 inch	Minimum Operating Temperature	-40 °F
