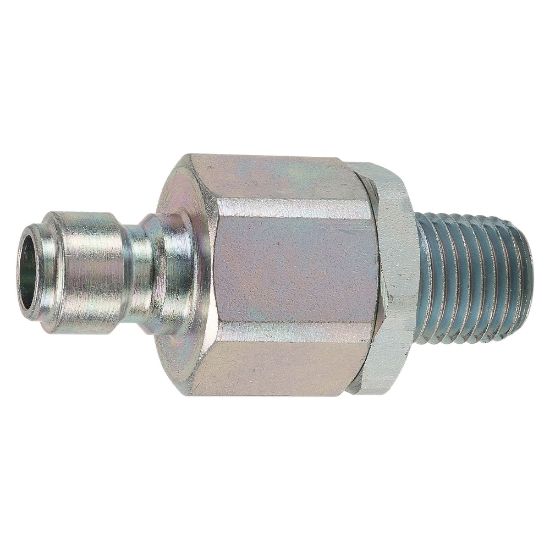

PEAN4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU PEAN4-4M

$12.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Body Material	Steel	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Male NPTF	Valve Type	Unvalved
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Seal Material	na	Body Material	Steel
Vacuum Pressure Rating	1/4 Inch-Hg	Application	Vacuum and medium pressure hydraulics
Product Type	Manual Connect	Plating Type	zinc with clear trivalent chromate
Hex Size	0.56 inch	Minimum Operating Temperature	-40 °F
