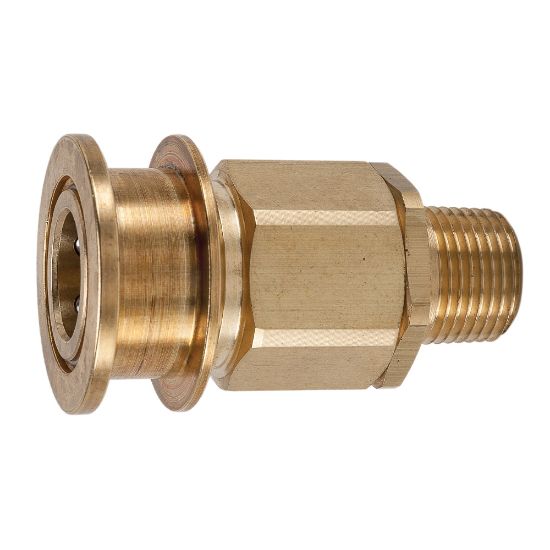

BVEAC6-6M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU BVEAC6-6M

$104.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	3/8	Connection Type	Male NPTF
Connection Thread Size (inch)	3/8 - 18	Coupling Half	Female Coupler
Maximum Operating Pressure	1500	Seal Material	Nitrile
Product Type	Manual Connect	Plating Type	na
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Body Material	Brass
Vacuum Pressure Rating	29.7 Inch-Hg	Minimum Operating Temperature	-40 °F
Hex Size	1.0 inch	Application	Vacuum and medium pressure hydraulics
