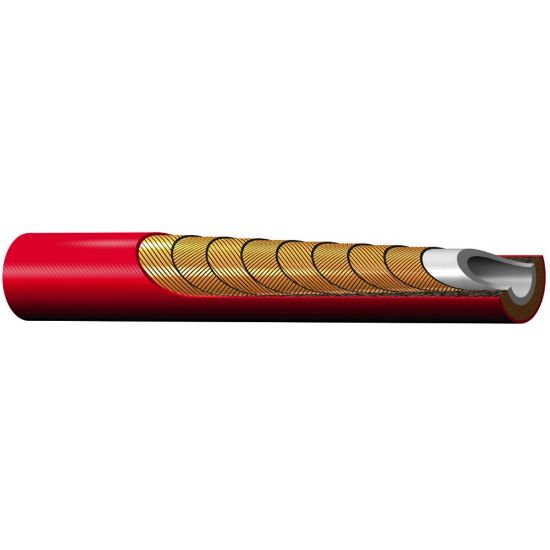

2840D-03V34 - Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	19 in stock

SKU 2840D-03V34

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	58,000	Outside Diameter	15 mm
Weight	0.63 kg/m	Maximum Operating Pressure	58000 psi
Inside Diameter	4.8 mm	Cover Material	Polyamide (PA)
Minimum Operating Temperature	-10 °C	Minimum Bend Radius	8 inch
Specifications Met	DIN 1829-2	Application	Waterblasting
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Compatible Fitting	2X Series
Design Factor	2:1	Maximum Operating Temperature	70 °C
Hose Inner Tube Material	Polyoxymethylene (POM)	Media	Water
Division	Parflex Division	Size	-3

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
