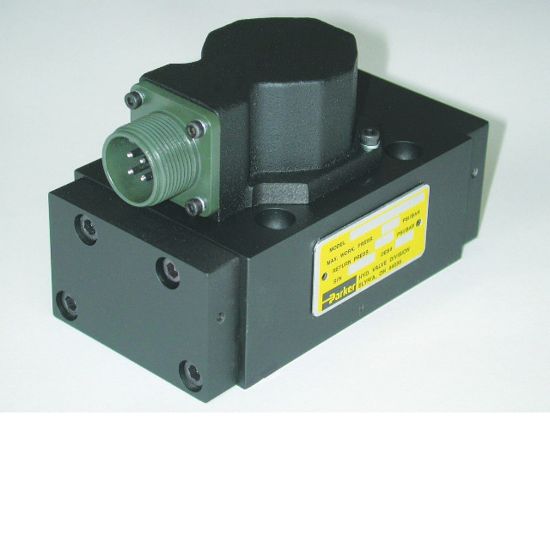

SE31SAAAANA15 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series

Parker’s SE31 series valve is a two stage, 4-way, flapper and nozzle style servovalve and is designed to fit onto DIN NG10 or NFPA D05 port patterns.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU SE31SAAAANA15

$24,281.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	D05HE (no Y port)
Maximum Operating Pressure	3000 PSI	Flow Rate (gpm)	15
Minimum Operating Temperature	-4 °F	Signal Input	Standard
Mounting Type	D05HE (no Y port)	Actuation Type	Hydraulic Pressure
Body Material	Aluminum	Weight	2.4 lb
Maximum Operating Pressure	210 bar	Additional Options	Consult catalog for additional features
Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm	Pilot Port Type	Internal
Valve Type	Servovalve	Maximum Operating Temperature	+140 °F
Connection Type	Port C1, (+) signal to A, C	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	15 Gal/min	Seal Material	Nitrile

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE31 Series (PDF)
