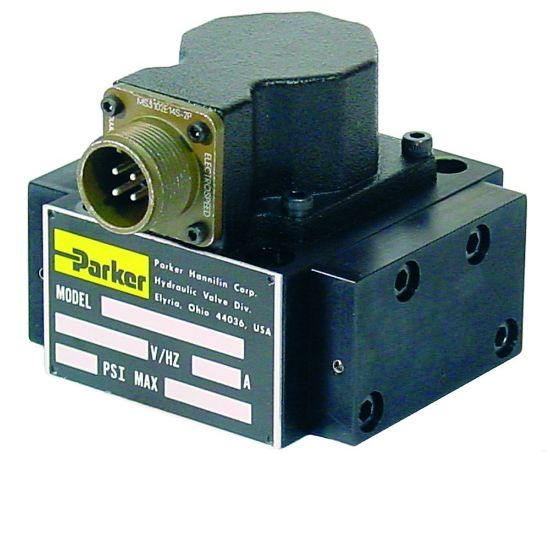

SE20SAAFBNA10 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE20SAAFBNA10

$24,286.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate (gpm)	10
Size	ISO 10372 standard 22.23 mm	Maximum Operating Pressure	4500 PSI
Signal Input	Standard	Minimum Operating Temperature	-4 °F
Actuation Type	Hydraulic Pressure	Weight	2.2 lb
Maximum Operating Pressure	4500 psi	Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm
Body Material	Aluminum	Additional Options	Consult catalog for Additional features
Valve Type	Servovalve	Division	Hydraulic Valve Systems Division
Connection Type	Port C2; (+) signal to A, C	Maximum Operating Temperature	+140 °F
Pilot Port Type	Internal	Maximum Flow Rate	10 Gal/min
Seal Material	Nitrile

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE20 Series (PDF)
