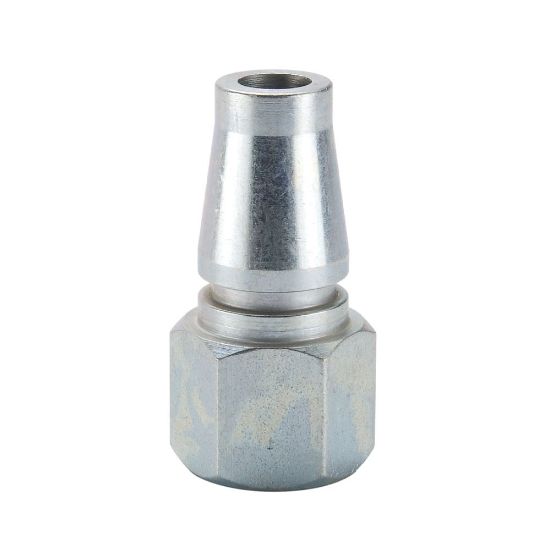

TL-254-2FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Name: TL-254-2FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series
SKU: TL-254-2FP
Price: 8.34 USD
Availability: LimitedAvailability

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

2 Limited Stock

Kansas City, KS

Partner Available:

13 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU TL-254-2FP

$8.34/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Coupling Half	Male Nipple	Connection Type	Female NPTF
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/8 - 27
Valve Type	Unvalved	Hex Size	0.5 inch
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Product Type	Push to connect	Interchange Type	Schrader Twist Lock
Application	Pneumatic	Body Material	Steel
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
