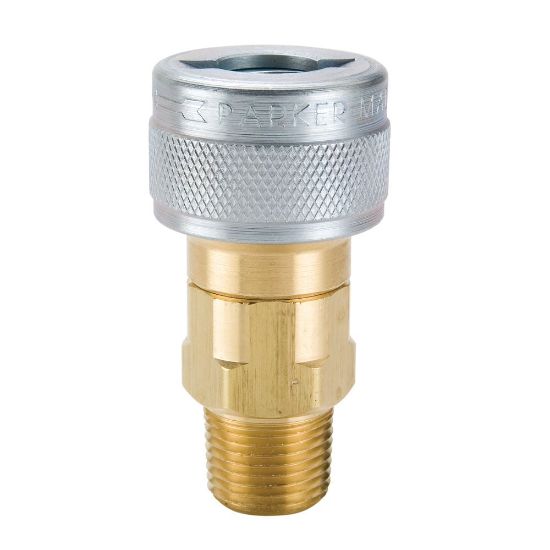

TL-251-4MP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	91 in stock

SKU TL-251-4MP

$34.65/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Coupling Half	Female Coupler
Hose I.D. (inch)	na	Connection Type	Male NPTF
Valve Type	Tubular	Application	Pneumatic
Minimum Operating Temperature	-40 °F	Hex Size	0.75 inch
Body Material	Brass	Interchange Type	Schrader Twist Lock
Dimensional Weight	0.03998800959232614 lb	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Product Type	Push to connect	Plating Type	Zinc with clear trivalent chromate plating on steel sleeve
Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
