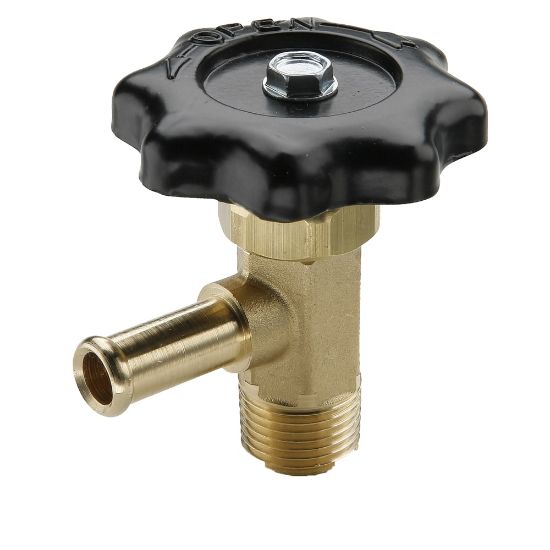

V404P-10-6 - Truck Valves

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	37 in stock

SKU V404P-10-6

$59.50/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Right Angle
Connection 1 Hose I.D. (inch)	5/8	Connection 1 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	3/8	Connection 1 Thread Size (inch)	na
Style	Hose to Pipe	Connection 2 Style	Male Pipe
Handle	Round	Connection 1 Style	Hose Barb
Body Material	Brass	Maximum Operating Pressure	150 psi
Stem Material	Brass	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Dimensional Weight	0.5518884892086331 lb
Minimum Operating Temperature	-34 °C
