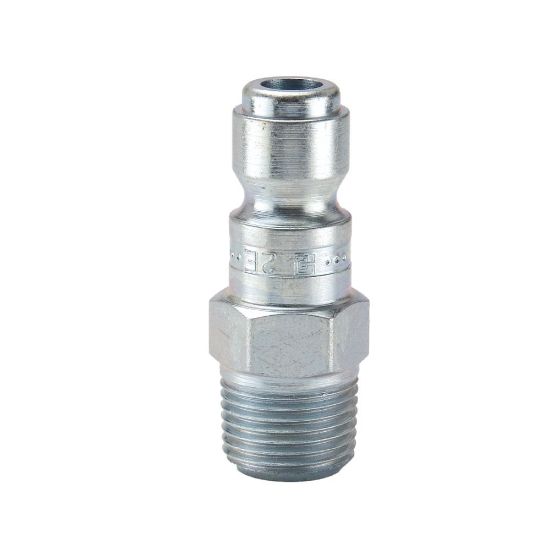

2C - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

26 in stock

Wichita, KS	9
Springfield, MO	6
Joplin, MO	5
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2

Partner Available:

1159 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 2C

$3.89/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Type	Male NPTF	Hose I.D. (inch)	na
Connection Thread Size (inch)	1/4 - 18	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Valve Type	Unvalved
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	300 psi	Interchange Type	Tru-Flate design
Dimensional Weight	0.013329336530775381 lb	Minimum Operating Temperature	-40 °F
Hex Size	0.56 inch	Application	Pneumatic
Connection Type	Manual Connect	Max. Operating Temperature	250 °F
Max. Operating Pressure	300 psi	Min. Operating Temperature	-40 °F
Valve Type	Unvalved	Interchange Type	Tru-Flate Design
Parker Division	Quick Coupling	Parker Group	Fluid Connector
Plating Type	Zinc With Clear Trivalent Chromate	Hex Size	0.56 Inch

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
