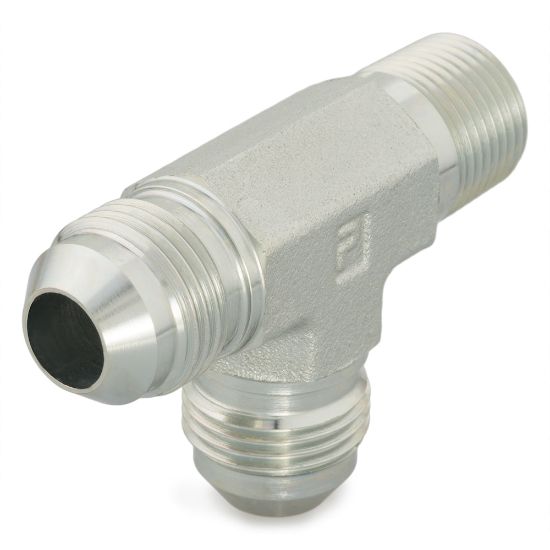

10 RTX-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	3 in stock

SKU 10 RTX-SS

$243.27/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Connection 3 Thread Size	na
Connection 1 Size	Male 37° Flare	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	5/8 inch	O-Ring Material	na
Body Material	Stainless Steel	Shape	Tee
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
Connection Type	37° Flare	Division	Tube Fittings Division
Connection 2 Size	Male NPT/NPTF	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	na	Connection 3 Size	Male 37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
