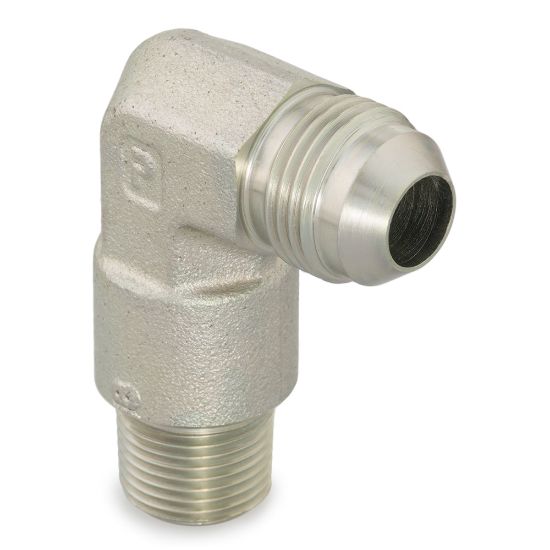

10 CCTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	83 in stock

SKU 10 CCTX-S

$34.25/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Body Material	Steel	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 4 Tube Outside Diameter	na	Connection Type	37° Flare
Division	Tube Fittings Division	Connection 2 Size	Male NPT/NPTF
Connection 2 Tube Outside Diameter	na	Connection 3 Size	na
Connection 2 Thread Size	na	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Connection 3 Thread Size	na
Connection 1 Size	Male 37° Flare	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	O-Ring Material	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
