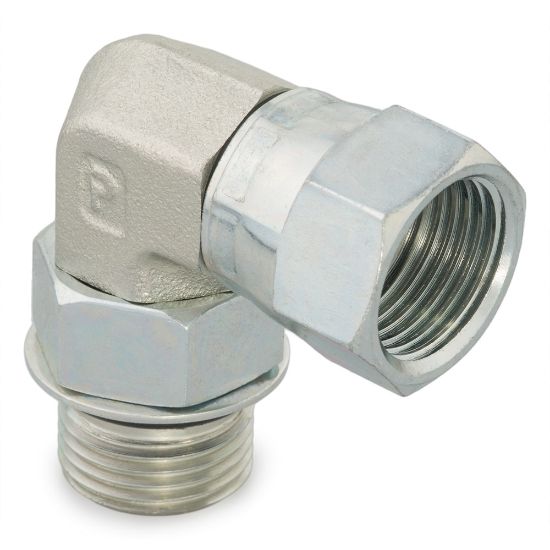

10 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 10 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 AOEX6-S
Price: 33.19 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

7 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10 AOEX6-S

$33.19/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Body Material	Steel
Shape	90° Elbow	Connection 4 Tube Outside Diameter	na
Connection Type	37° Flare	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Size	Male SAE-ORB
Connection 3 Size	na	Connection 2 Tube Outside Diameter	na
Connection 1 Size	Female 37° Flare Swivel	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	Connection 3 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
