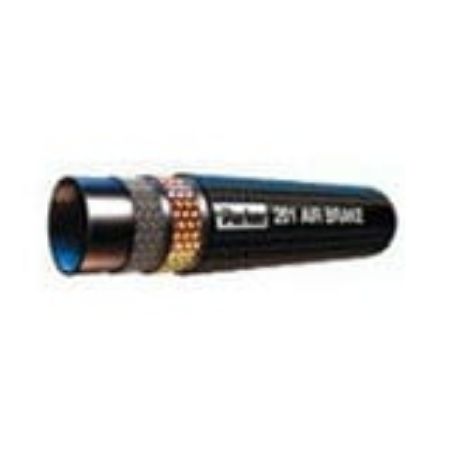

Transportation Hose 200-3000 PSI - 201 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 201 hose is a transportation hose that has a pressure range of 200-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 201 hose is designed, built, and tested to meet SAE J517 100R5 / SAE J1402 AII / DOT FMVSS 106 AIR BRAKE - AII performance specifications. Sizes range from 3/16” to 3” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 200-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• D.O.T. FMVSS 106-AIR BRAKE-AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings (for -4 to -40)
• 20 series fittings (for -4 to -48)
• 22 series fittings (for -4 to -48)
Read More...Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 200-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• D.O.T. FMVSS 106-AIR BRAKE-AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings (for -4 to -40)
• 20 series fittings (for -4 to -48)
• 22 series fittings (for -4 to -48)
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Application | Minimum Bend Radius | Minimum Operating Temperature | Hose Reinforcement Material | Specifications Met | Inside Diameter | Weight | Maximum Operating Pressure | Outside Diameter | Nominal Hose Inside Diameter | Hose Inner Tube Material | Compatible Fitting | Maximum Operating Temperature | Division | Hose Cover Type | Media |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 201-12 | Backordered | 787 in stock | $23.70/foot | FT | -12 | Antifreeze Solutions | 6-1/2 inch | -40 °C | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | 5/8 inch | 0.60 kg/m | 1500 psi | 1.080 inch | 16 mm | Synthetic Rubber | 26 Series | 150 °C | Hose Products Division | Fiber Cover | Petroleum Hydraulic Fluids (Petroleum Base) | |
| 201-16 | Backordered | 1704 in stock | $27.17/foot | FT | -16 | Diesel Fuels | 7-3/8 inch | -40 °F | 1 Braid of Fiber | SAE J1402, Class AII | 7/8 inch | 0.46 lb/ft | 5.6 MPa | 31 mm | 22 mm | Synthetic Rubber | 22 Series | 302 °F | Hose Products Division | Fiber Cover | Petroleum Hydraulic Fluids (Petroleum Base) | |
| 201-20 | 317 in stock | 1442 in stock | $28.26/foot | FT | -20 | Petroleum Base Hydraulic Fluids | 9 inch | -40 °C | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | 29 mm | 0.76 kg/m | 4.3 MPa | 1.5 inch | 29 mm | Synthetic Rubber | 20 Series | 150 °C | Hose Products Division | Fiber Cover | Fuels (Diesel Fuels & Antifreeze Solutions) | |
| 201-24 | 175 in stock | 927 in stock | $38.69/foot | FT | -24 | Lubricating Oils | 10-1/2 inch | -40 °F | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | 1-3/8 inch | 0.68 lb/ft | 500 psi | 44 mm | 35 mm | Synthetic Rubber | 26 Series | 302 °F | Hose Products Division | Fiber Cover | Fuels (Diesel Fuels & Antifreeze Solutions) | |
| 201-32 | 18 in stock | 562 in stock | $53.49/foot | FT | -32 | Antifreeze Solutions | 13-1/4 inch | -40 °C | 1 Braid of Fiber | SAE J517 and 100R5 | 1-13/16 inch | 1.32 kg/m | 2.4 MPa | 2.220 inch | 46 mm | Synthetic Rubber | 22 Series | 302 °F | Hose Products Division | Fiber Cover | Lubricants (Oils) | |
| 201-4 | Backordered | 3157 in stock | $12.07/foot | FT | -4 | Lubricating Oils | 75 mm | -40 °F | 1 Braid of Fiber and 1 Braid of Steel Wire | SAE J517 and 100R5 | 5 mm | 0.15 lb/ft | 21 MPa | 13 mm | 5 mm | Synthetic Rubber | 22 Series | 302 °F | Hose Products Division | Fiber Cover | Lubricants (Oils) | |
| 201-40 | Backordered | Backordered | $89.25/foot | FT | -40 | Diesel Fuels | 24 inch | -40 °F | 1 Braid of Fiber | SAE J1402, Class AII | 2-3/8 inch | 1.95 kg/m | 2.4 MPa | 2.880 inch | 60 mm | Synthetic Rubber | 22 Series | 302 °F | Hose Products Division | Fiber Cover | Lubricants (Oils) | |
| 201-5 | Backordered | 201 in stock | $13.04/foot | FT | -5 | Lubricating Oils | 3-3/8 inch | -40 °F | 1 Braid of Fiber and 1 Braid of Steel Wire | SAE J517 and 100R5 | 1/4 inch | 0.18 lb/ft | 3000 psi | 15 mm | 6 mm | Synthetic Rubber | 20 Series | 150 °C | Hose Products Division | Fiber Cover | Petroleum Hydraulic Fluids (Petroleum Base) | |
| 201-6 | Backordered | 2287 in stock | $13.71/foot | FT | -6 | Lubricating Oils | 100 mm | -40 °C | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AII Air Brake | 5/16 inch | 0.34 kg/m | 15.7 MPa | 17 mm | 8 mm | Synthetic Rubber | 20 Series | 150 °C | Hose Products Division | Fiber Cover | Lubricants (Oils) | |
| 201-8 | Backordered | 4417 in stock | $14.49/foot | FT | -8 | Antifreeze Solutions | 115 mm | -40 °C | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | 13/32 inch | 0.40 kg/m | 2000 psi | 0.770 inch | 10 mm | Synthetic Rubber | 26 Series | 302 °F | Hose Products Division | Fiber Cover | Fuels (Diesel Fuels & Antifreeze Solutions) |
