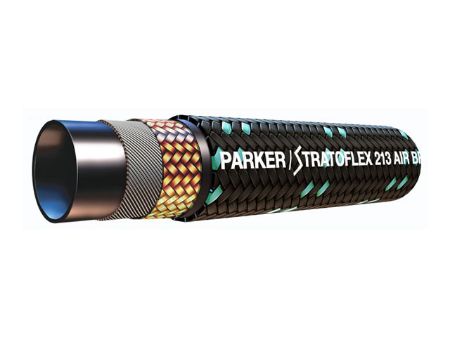

Transportation Hose 175-2000 PSI - 213 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 213 hose is a transportation hose that has a pressure range of 175-2000 PSI and is reinforced with one fiber braid and one steel braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 213 hose is designed, built, and tested to meet D.O.T. performance specifications. Sizes range from 3/16” to 2-3/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 175-2000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AI certification
• Compatible with temperatures up to 302 ͦF
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 21 series fittings
• 23 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Hose Pressure Range | Hose Category | Series | Application | Mating End Fitting Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 213-10 | Backordered | 759 in stock | $20.22/foot | FT | FT | -10 | Hose Products Division | Antifreeze Solutions | Fuels (Diesel Fuels & Antifreeze Solutions) | 7 MPa | 302 °F | -45 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.33 kg/m | 0.830 inch | 1/2 inch | 26 Series | 55 mm | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 12 mm | Rubber | 200 FT | 200 | 0.5 Inch | 1000 PSI (70 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-12 | Backordered | 856 in stock | $23.59/foot | FT | FT | -12 | Hose Products Division | Antifreeze Solutions | Fuels (Diesel Fuels & Antifreeze Solutions) | 750 psi | 302 °F | -45 °C | SAE J1402, Class AI | 0.24 lb/ft | 0.960 inch | 5/8 inch | 26 Series | 2-3/4 inch | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 16 mm | Rubber | 175 FT | 175 | 0.625 Inch | 750 PSI (50 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-16 | Backordered | 3190 in stock | $27.56/foot | FT | FT | -16 | Hose Products Division | Lubricating Oils | Fuels - Check fuel type with our catalogue chart. | 400 psi | 302 °F | -50 °F | SAE J1402, Class AI | 0.3 lb/ft | 31 mm | 22 mm | 23 Series | 90 mm | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 22 mm | Rubber | 150 FT | 150 | 0.875 Inch | 400 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-20 | 28 in stock | 571 in stock | $25.67/foot | FT | FT | -20 | Hose Products Division | Antifreeze Solutions | Petroleum Hydraulic Fluids (Petroleum Base) | 300 psi | 150 °C | -50 °F | SAE J1402, Class AI | 0.65 kg/m | 1.490 inch | 1-1/2 inch | 21 Series | 115 mm | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Black with Teal accent | 29 mm | Rubber | 125 FT | 125 | 1.125 Inch | 300 PSI (20 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 1.125 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-24 | Backordered | 3014 in stock | $49.52/foot | FT | FT | -24 | Hose Products Division | Diesel Fuels | Fuels - Check fuel type with our catalogue chart. | 300 psi | 302 °F | -45 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.77 kg/m | 1.730 inch | 35 mm | 21 Series | 7-1/2 inch | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 35 mm | Rubber | 125 FT | 125 | 1.375 Inch | 300 PSI (20 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 1.375 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-32 | Backordered | 28 in stock | $62.99/foot | FT | FT | -32 | Hose Products Division | Lubricating Oils | Lubricants (Oils) | 1.4 MPa | 302 °F | -45 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.67 lb/ft | 54 mm | 1-13/16 inch | 21 Series | 14 inch | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 46 mm | Rubber | 60 FT | 60 | 1.813 Inch | 200 PSI (14 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 1.813 Inch | Inch | Rubber | 100 to 249 PSI (7 to 17 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-4 | Backordered | 573 in stock | $12.05/foot | FT | FT | -4 | Hose Products Division | Antifreeze Solutions | Petroleum Hydraulic Fluids (Petroleum Base) | 14 MPa | 302 °F | -45 °C | SAE J1402, Class AI | 0.18 kg/m | 0.490 inch | 5 mm | 21 Series | 20 mm | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Black with Teal accent | 5 mm | Rubber | 500 FT | 500 | 0.188 Inch | 2000 PSI (140 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-5 | 54 in stock | 3 in stock | $9.75/foot | FT | FT | -5 | Hose Products Division | Lubricating Oils | Fuels (Diesel Fuels & Antifreeze Solutions) | 10.5 MPa | 150 °C | -45 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.21 kg/m | 0.550 inch | 1/4 inch | 21 Series | 1 inch | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 6 mm | Rubber | 325 FT | 325 | 0.25 Inch | 1500 PSI (100 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-6 | Backordered | 383 in stock | $14.41/foot | FT | FT | -6 | Hose Products Division | Antifreeze Solutions | Petroleum Hydraulic Fluids (Petroleum Base) | 10.5 MPa | 150 °C | -45 °C | SAE J1402, Class AI | 0.17 lb/ft | 0.620 inch | 5/16 inch | 23 Series | 30 mm | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 8 mm | Rubber | 500 FT | 500 | 0.313 Inch | 1500 PSI (100 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 | |
| 213-8 | Backordered | 1095 in stock | $15.36/foot | FT | FT | -8 | Hose Products Division | Lubricating Oils | Coolants | 1250 psi | 302 °F | -50 °F | SAE J1402, Class AI | 0.2 lb/ft | 19 mm | 10 mm | 23 Series | 1-3/4 inch | PKR® Rubber | 1 Braid of Fiber | Black with Teal accent | 10 mm | Rubber | 250 FT | 250 | 0.406 Inch | 1250 PSI (90 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Low | Transportation | 213 | Marine Fuel and Engine | 26, 21, 23 |
