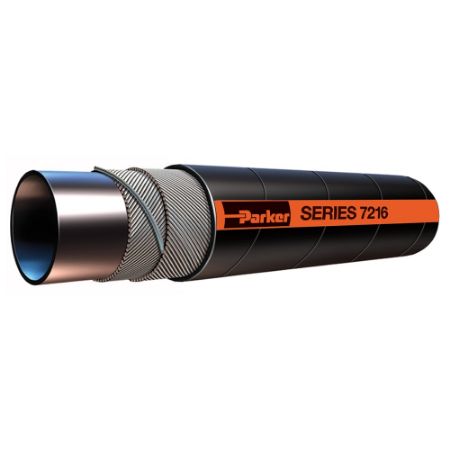

TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Translite Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance. Translite is the tried-and-true workhorse of petroleum transport suction hoses.

Markets:
• General Industrial
• Oil & Gas
• Transportation

Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile or red chloroprene for abrasion, heat, oil resistance and durability.

Applications:
• Biodiesel (to B20 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks

Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Hose I.D. (inch)	Application	Minimum Bend Radius	Hose Reinforcement Material	Specifications Met	Minimum Operating Temperature	Cover Material	Maximum Operating Pressure	Inside Diameter	Outside Diameter	Vacuum Pressure Rating	Weight	Nominal Hose Inside Diameter	Division	Size	Media	Design Factor	Maximum Operating Temperature	Hose Inner Tube Material
7216-1252	132 in stock	115 in stock	$11.40/foot	FT	Black	1-1/4	Petroleum Transfer	76 mm	Multiple Plies of Textile with Wire Helix	n/a	-40 °C	Nitrile	1 MPa	1-1/4 inch	1.670 inch	737 mm-Hg	0.59 lb/ft	32 mm	Hose Products Division	-20	Lubricants (Oils)	4:1	180 °F	Nitrile
7216-1502	4 in stock	175 in stock	POR	FT	Black	1-1/2	Petroleum Transfer	4 inch	Multiple Plies of Textile with Wire Helix	n/a	-40 °F	Nitrile	10.3 bar	1-1/2 inch	1.990 inch	737 mm-Hg	1.24 kg/m	40 mm	Hose Products Division	-24	Lubricants (Oils)	4:1	82 °C	Nitrile
7216-2002	46 in stock	213 in stock	POR	FT	Black	2	Petroleum Transfer	6 inch	Multiple Plies of Textile with Wire Helix	n/a	-40 °C	Nitrile	1 MPa	2 inch	64 mm	737 mm-Hg	1.7 kg/m	50 mm	Hose Products Division	-32	Fuels (Biodiesel to B20 in dedicated service)	4:1	180 °F	Black
7216-4002	46 in stock	456 in stock	$41.22/foot	FT	Black	4	Petroleum Transfer	16 inch	Multiple Plies of Textile with Wire Helix	n/a	-40 °F	Nitrile	10.3 bar	4 inch	118.3 mm	737 mm-Hg	4.43 kg/m	100 mm	Hose Products Division	-64	Fuels (Biodiesel to B20 in dedicated service)	4:1	82 °C	Nitrile
