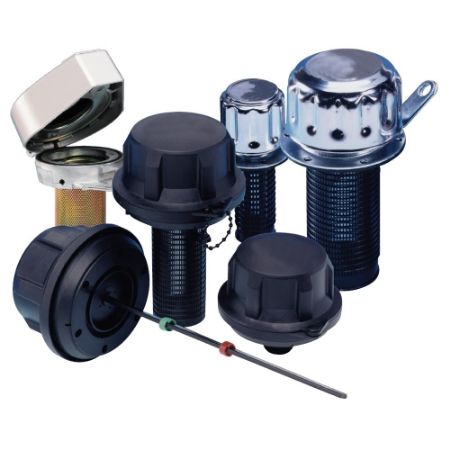

Top-mounted Breathers and Filler Breathers - AB Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Ingress of airborne contaminants into hydraulic systems can cause a number of costly issues, including increased wear on pumps and cylinders, decreased performance, shorter maintenance intervals, and added downtime.
The Parker AB Series comprises a full range of top-mounted breathers and filler breathers designed to prevent this by keeping out harmful contaminants and allowing the tank / fluid reservoir to effectively breath during equipment operation.
Multiple configurations are available to meet the unique requirements of customers’ hydraulic systems, including:
Filler Breathers - Glass-filled nylon or plated metal steel. Multiple installation available including single hole, three hole, or six hole installation. Flow rates up 620 L/min (163 GMP).
Screw-on type Breathers - Glass-filled nylon or plated metal steel. Multiple connection types available. Flow rates up to 620 L/min (163 GPM). Dipsticks available with all options (two lengths and in packs of 10).
Lockable Fillers and Filler Breathers (metal) - Pressurized and unpressurized threaded types available. For added reservoir security and oil protection, certain metal filler breathers can be specified with a locking lug option.
AB Series breathers and filler breathers are ideally suited for equipment required to operate in environments laden with dirt and dust.
Benefits
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic circuits, while allowing sufficient airflow into and out of the fluid reservoir
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Molded in non-corrodible, glass-filled nylon – strong and light
• Filler breathers available with single hole, six hole, and three hole installation
• Screw-on breather range – G1/2 and G3/4 options
• Compact range – G1/4, G3/8, R1/2 and R3/4 options
• Metal filler breathers – pressurized and unpressurized threaded type
• Flange mounting type options
• Lockable options for reservoir security and oil protection
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...The Parker AB Series comprises a full range of top-mounted breathers and filler breathers designed to prevent this by keeping out harmful contaminants and allowing the tank / fluid reservoir to effectively breath during equipment operation.
Multiple configurations are available to meet the unique requirements of customers’ hydraulic systems, including:
Filler Breathers - Glass-filled nylon or plated metal steel. Multiple installation available including single hole, three hole, or six hole installation. Flow rates up 620 L/min (163 GMP).
Screw-on type Breathers - Glass-filled nylon or plated metal steel. Multiple connection types available. Flow rates up to 620 L/min (163 GPM). Dipsticks available with all options (two lengths and in packs of 10).
Lockable Fillers and Filler Breathers (metal) - Pressurized and unpressurized threaded types available. For added reservoir security and oil protection, certain metal filler breathers can be specified with a locking lug option.
AB Series breathers and filler breathers are ideally suited for equipment required to operate in environments laden with dirt and dust.
Benefits
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic circuits, while allowing sufficient airflow into and out of the fluid reservoir
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Molded in non-corrodible, glass-filled nylon – strong and light
• Filler breathers available with single hole, six hole, and three hole installation
• Screw-on breather range – G1/2 and G3/4 options
• Compact range – G1/4, G3/8, R1/2 and R3/4 options
• Metal filler breathers – pressurized and unpressurized threaded type
• Flange mounting type options
• Lockable options for reservoir security and oil protection
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | SKU | Availability | Partner Available | Price | UOM | Micron Rating | Seal Material | Flow Rate | Installation | Housing Material | Outside Diameter | Pressure Relief Valve Type | Features | Includes | Product Type | Strainer Type | Connection Type | Division | For Fluid Type | Technology | Filter Material | Application | Mounting Type | Brand | Operating Temperature | Product Series | Division | Industry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5491 | Backordered | 10 in stock | $24.38/each | EA | 10 µm | Cork gasket | 430 l/min | Tank hole mounted | Plated Mild Steel | 76 mm | Un-Pressurised | Includes dipstick 355 mm | Includes dipstick 355mm | Filler Breather Cap | Without strainer | Replacement cap | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Deck and Mobile Cranes | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Marine | |
| 5561 | Backordered | 5 in stock | $123.82/each | EA | 10 µm | Cork gasket | 430 l/min | Tank hole mounted | Plated Mild Steel | 76 mm | Un-Pressurised | - | Locking lug | Lockable Filler Breather | 95 mm strainer | 6 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Power Packs | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| 5884.10 | Backordered | Backordered | $58.79/each | EA | 5 µm | Cork gasket | 1500 l/min | - | Plated Mild Steel | 94 mm | Un-Pressurised | Spare element | Spare element | Breather Spin on element | - | - | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Deck and Mobile Cranes | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Oil and Gas | |
| AB.1380.10 | Backordered | Backordered | $39.44/each | EA | 10 µm | Cork gasket | 135 l/min | Tank hole mounted | Plated Mild Steel | 45 mm | Un-Pressurised | Anti Splash Plate | - | Filler Breather | 63 mm strainer | 3 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Excavators | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Mining | |
| AB.1380.40 | Backordered | Backordered | $45.75/each | EA | 40 µm | Cork gasket | 270 l/min | Tank hole mounted | Plated Mild Steel | 45 mm | Un-Pressurised | - | - | Filler Breather | Without strainer | 3 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Hydraulic Presses | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Oil and Gas | |
| AB.1381.40 | Backordered | Backordered | $75.88/each | EA | 40 µm | No seal | 720 l/min | Tank hole mounted | Plated Mild Steel | 76 mm | Un-Pressurised | - | - | Air Breather | Without strainer | Push-on mounted | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Firefighting Equipment | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Mining | |
| AB.6821001.UC | Backordered | Backordered | POR | EA | 10 µm | Nitrile | 1150 l/min | Tank hole mounted | Glass-filled Nylon | 92 mm | Un-Pressurised | Dipstick mountable | Dipstick mountable | Filler Breather | 95 mm strainer | 3 Clamp mounted | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Harvesters | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Marine | |
| AB.6821301.UC | Backordered | Backordered | POR | EA | 10 µm | Nitrile | 1150 l/min | Tank hole mounted | Glass-filled Nylon | 92 mm | 0.35 Bar | Dipstick mountable | Dipstick mountable | Filler Breather | 95 mm strainer | 3 Clamp mounted | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Forwarders | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| AB.687131.UC | Backordered | Backordered | POR | EA | 10 µm | Nitrile | 740 l/min | Srew-On | Glass-filled Nylon | 70 mm | 0.35 Bar | Dipstick mountable | Dipstick mountable | Breather | Without strainer | G3/4 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Waste Management, Dump and Fork Lift Trucks | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Forestry | |
| AB.68918 | Backordered | Backordered | $76.96/each | EA | 10 µm | Nitrile | 1000 l/min | Tank hole mounted | Glass-filled Nylon | 76 mm | Un-Pressurised | - | - | Filler Breather | 95 mm strainer | 6 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Harvesters | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Mining | |
| AB.98410201.UC | Backordered | Backordered | $62.17/each | EA | 10 µm | Nitrile | 620 l/min | Srew-On | Glass-filled Nylon | 101 mm | Un-Pressurised | - | - | Filler Breather | Without strainer | G3/4 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | Power Packs | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Marine | ||
| AB.98412201.UC | Backordered | 1 Limited Stock | $88.06/each | EA | 10 µm | Nitrile | 620 l/min | Srew-On | Glass-filled Nylon | 101 mm | 0.2 Bar | - | - | Filler Breather | Without strainer | G3/4 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | Forwarders | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Oil and Gas | ||
| AB116310 | Backordered | 14 in stock | $68.77/each | EA | 10 µm | Cork gasket | 430 l/min | Tank hole mounted | Plated Mild Steel | 76 mm | Un-Pressurised | Anti Splash Plate | - | Filler Breather | 95 mm strainer | 6 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Hydraulic Presses | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| AB68110 | Backordered | Backordered | POR | EA | 10 µm | Nitrile | 185 l/min | Tank hole mounted | Glass-filled Nylon | 51 mm | Un-Pressurised | Anti Splash Plate | - | Filler Breather | Without strainer | 3 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Reach Stackers | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Forestry | |
| AB68118 | Backordered | Backordered | $63.72/each | EA | 10 µm | Nitrile | 185 l/min | Tank hole mounted | Glass-filled Nylon | 51 mm | Un-Pressurised | Anti Splash Plate | - | Filler Breather | 63,5 mm strainer | 3 Hole Installation | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Firefighting Equipment | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| AB683101 | Backordered | 25 in stock | $138.41/each | EA | 10 µm | No seal | 175 l/min | Srew-On | Glass-filled Nylon | 40 mm | Un-Pressurised | Anti Splash Plate | Pack of 10 pcs | Breather | - | G1/4 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Forwarders | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| AB685101 | Backordered | 2 Limited Stock | $62.15/each | EA | 10 µm | Nitrile | 450 l/min | Srew-On | Glass-filled Nylon | 70 mm | Un-Pressurised | Anti Splash Plate | Dipstick mountable | Breather | - | G3/8 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Excavators | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Forestry | |
| AB686101 | Backordered | Backordered | $33.76/each | EA | 10 µm | Nitrile | 510 l/min | Srew-On | Glass-filled Nylon | 70 mm | Un-Pressurised | Anti Splash Plate | Dipstick mountable | Breather | - | G1/2 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Forwarders | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture | |
| AB687101 | Backordered | Backordered | $29.52/each | EA | 10 µm | Nitrile | 740 l/min | Srew-On | Glass-filled Nylon | 70 mm | Un-Pressurised | Anti Splash Plate | Dipstick mountable | Breather | - | G3/4 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulics | 10µ abs. PU-foam | Hydraulic Presses | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Forestry | |
| AB68Y101 | Backordered | Backordered | POR | EA | 10 µm | No seal | 215 l/min | Srew-On | Glass-filled Nylon | 40 mm | Un-Pressurised | Anti Splash Plate | Pack of 10 pcs, Dipstick mountable | Breather | - | R1/2 male thread | Hydraulic & Industrial Process Filtration Division EMEA | Air | Filtration | 10µ abs. PU-foam | Marine Steering Units | Tanktop | Parker | -30 to 90 °C | AB Series | Hydraulic & Industrial Process Filtration Division EMEA | Agriculture |
