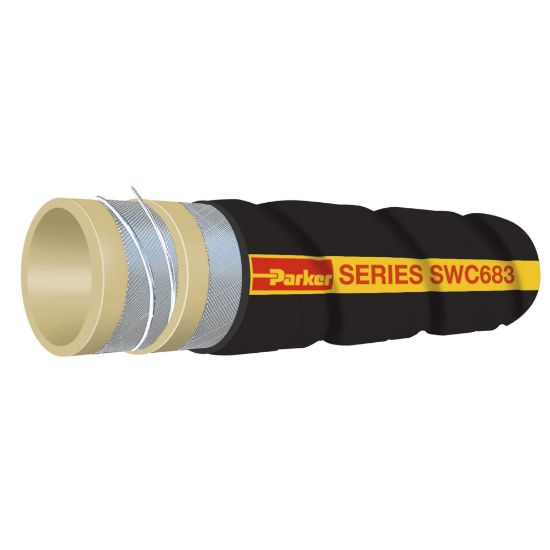

SWC683-1000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	28 in stock

SKU SWC683-1000

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	1	Cover Structure	Corrugated
Minimum Bend Radius	50.8 mm	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Application	Transportation
Outside Diameter	38.1 mm	Nominal Hose Inside Diameter	25 mm
Weight	0.49 lb/ft	Maximum Operating Pressure	1.7 MPa
Inside Diameter	25.4 mm	Vacuum Pressure Rating	737 mm-Hg
Division	Hose Products Division	Maximum Operating Temperature	121 °C
Hose Inner Tube Material	Tan (MXLPE)	Size	-16
Compatible Fitting	n/a	Media	Chemicals
Cover Material	Ethylene Propylene Diene Monomer (EPDM)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
