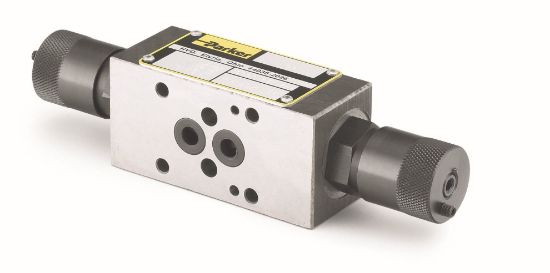

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FM2AAKV - Throttle Check Valve - Series FM2 (N.A.)

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FM2AAKV

$423.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Connection Size	CETOP 03 (NG06)	Maximum Flow Rate	20 GAL/MIN (76 L/MIN)
Maximum Operating Pressure	5000 PSI (345 BAR)	Needle Type	Standard
Flow Direction	Meter-in (inverted), Meter-out	Body Material	Steel
Weight	3.8	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Mounting Type	Sandwich plate
Product Series	Throttle check valve	Actuation Type	Manually
Configuration	Single (A port only)	Connection Size	CETOP 03 (NG06)
Flow Direction	Meter-in (inverted), Meter-out	Cracking Pressure	5
Mounting Position	Unrestricted	Adjustment Mechanism	Knob
Minimum Operating Temperature	-4	Needle Type	Standard
Maximum Operating Temperature	158	Division	Hydraulic Valve Systems Division
Connection Type	N/A	Maximum Flow Rate	20
Seal Material	Fluorocarbon

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
