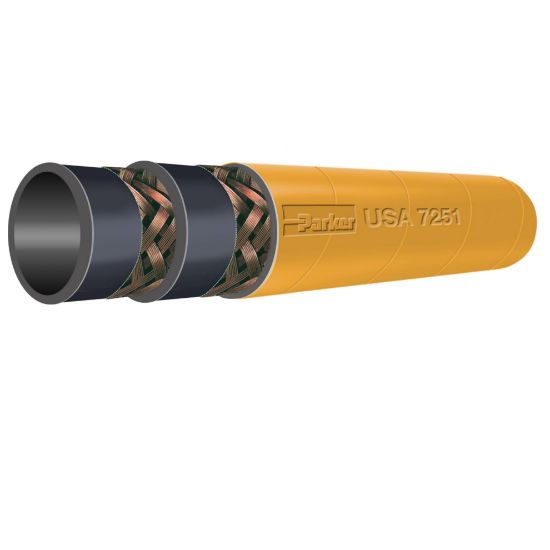

7251-3002K - THORO-BRAID® Medium Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7251

Thoro-Braid Medium Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in heavy duty applications to 212°F and 600 psi, Series 7251

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	142 in stock

SKU 7251-3002K

$51.31/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Maximum Working Pressure (psi)	500	Outside Diameter	3.656 inch
Package Type	Carton	Inside Diameter	3 inch
Maximum Operating Pressure	500 psi	Application	Multipurpose
Specifications Met	MSHA	Cover Color	Yellow
Weight	1.24 kg	Hose Inner Tube Material	Chloroprene
Media	Air	Maximum Operating Temperature	212 °F
Compatible Fitting	n/a	Division	Hose Products Division
Length per Package	150 ft	Cover Structure	Perforated
Cover Material	Nitrile/PVC	Minimum Operating Temperature	-29 °C
Minimum Bend Radius	36.5 inch	Hose Reinforcement Material	2 Braids of Wire

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
