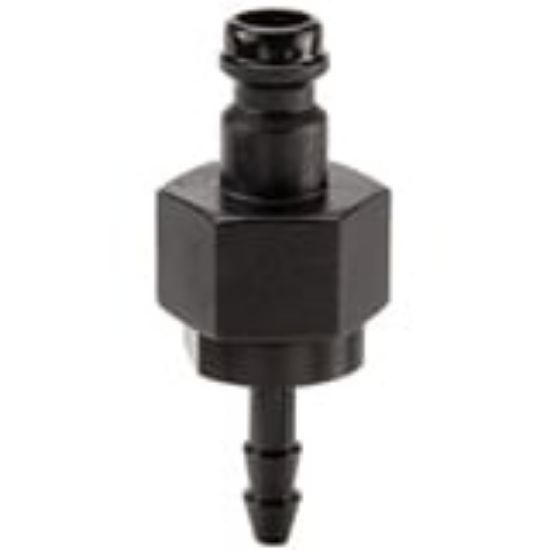

S2-ANV-04-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU S2-ANV-04-HB

$16.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/8	Connection Thread Size (inch)	na
Connection Type	Hose barb	Flow Rate	1.5
Connection Tube Inside Diameter	1/4	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	180 °F
Seal Material	Nitrile	Product Type	Push-to-Connect
Hex Size	0.67 inch	Minimum Operating Temperature	0 °F
Application	Low pressure fluids and gases	Body Material	Acetal
Spring Material	316 Stainless steel	Maximum Operating Pressure	145 psi
