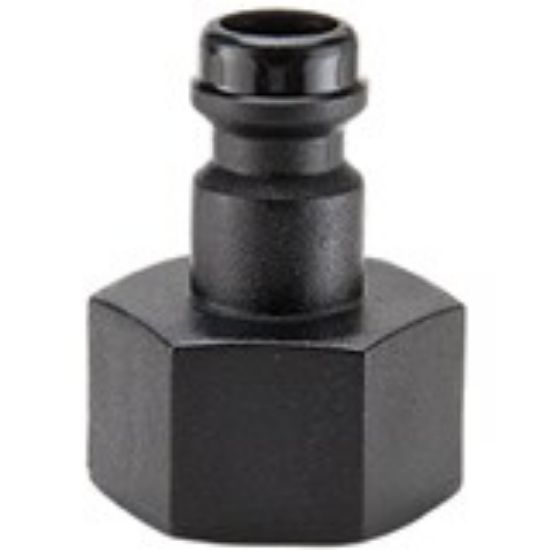

S2-ANS-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU S2-ANS-04-FP

$10.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	1.5
Connection Thread Size (inch)	1/4 - 18	Connection Type	Female NPT
Body Size (inch)	1/8	Coupling Half	Male Nipple
Connection Tube Inside Diameter	na	Hex Size	0.67 inch
Minimum Operating Temperature	0 °F	Application	Low pressure fluids and gases
Body Material	Acetal	Spring Material	316 Stainless steel
Maximum Operating Pressure	145 psi	Valve Type	Unvalved
Division	Quick Coupling Division	Maximum Operating Temperature	180 °F
Seal Material	Nitrile	Product Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
