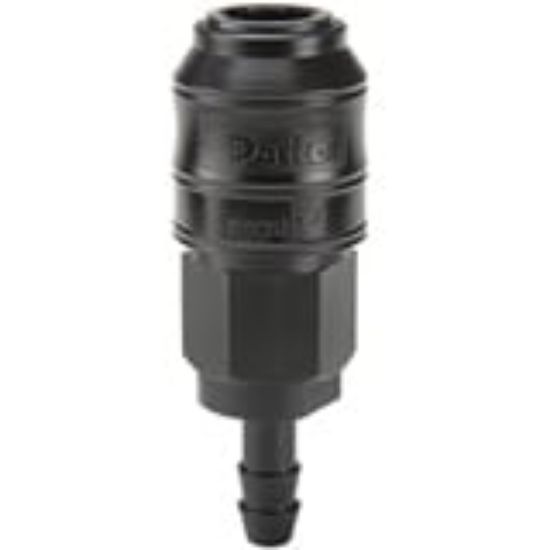

S2-ACV-03-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU S2-ACV-03-HB

$25.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	1.5
Connection Type	Hose barb	Coupling Half	Female Coupler
Connection Tube Inside Diameter	3/16	Body Size (inch)	1/8
Connection Thread Size (inch)	na	Hex Size	0.67 inch
Minimum Operating Temperature	0 °F	Application	Low pressure fluids and gases
Spring Material	Stainless steel	Maximum Operating Pressure	145 psi
Body Material	Acetal	Division	Quick Coupling Division
Maximum Operating Temperature	180 °F	Valve Type	Poppet
Seal Material	Nitrile	Product Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
