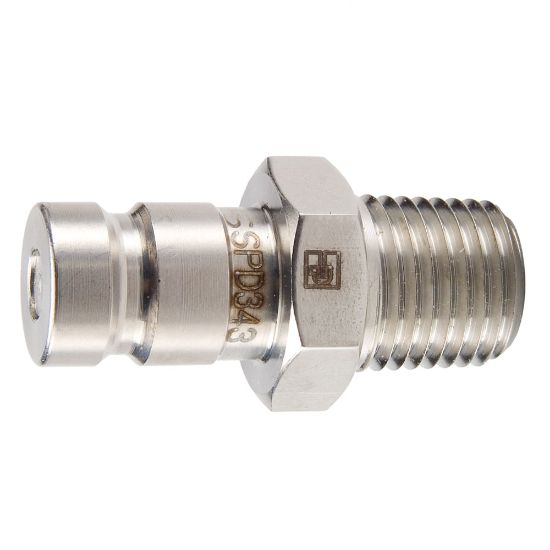

SSPD343Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU SSPD343Y

$125.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPTF	Tube Size (inch)	na
Connection Thread Size (inch)	1/4 - 18	Flow Rate	0.8 Gal/min
Application	Diagnostic	Maximum Operating Pressure	6000 psi
Body Material	Stainless steel	Division	Quick Coupling Division
Valve Type	Non-spill	Seal Material	Fluorocarbon
Body Size	1/8 inch	Maximum Operating Temperature	400 °F
Product Type	Push to connect	Hex Size	0.69 inch
Plating Type	na	Specifications Met	SAE J1502 / ISO 15171-1
Minimum Operating Temperature	-15 °F
