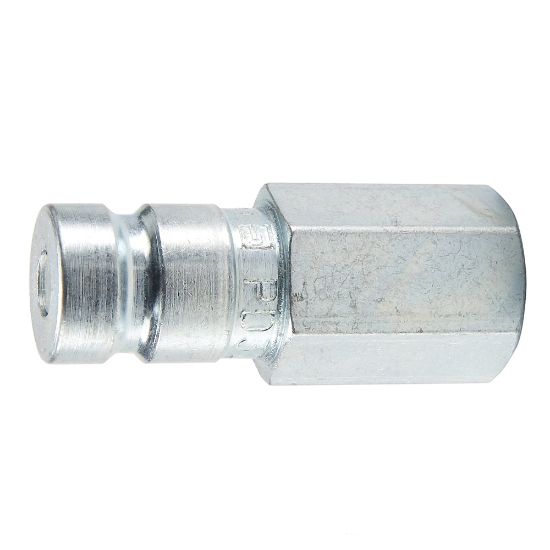

PD342 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD342 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD342
Price: 18.73 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:

54 in stock

Olivette, MO	30
TOPEKA, KS	6
Springfield, MO	4
Peoria, IL	4
WICHITA, KS	3
COLUMBIA, MO	2
Olivette, MO	2
Decatur, IL	2
Kansas City, KS	1

Partner Available:

387 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD342

$18.73/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Connection Type	Female NPTF
Coupling Half	Male Nipple	Dimensional Weight	0.01335431654676259 lb
Maximum Operating Pressure	6000 psi	Body Material	Steel
Minimum Operating Temperature	-40 °F	Hex Size	0.75 inch
Application	Diagnostics	Flow Rate	0.8 Gal/min
Specifications Met	SAE J1502	Seal Material	Nitrile
Body Size	1/8 inch	Product Type	Push to Connect
Plating Type	Zinc with Clear Trivalent Chromate	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
