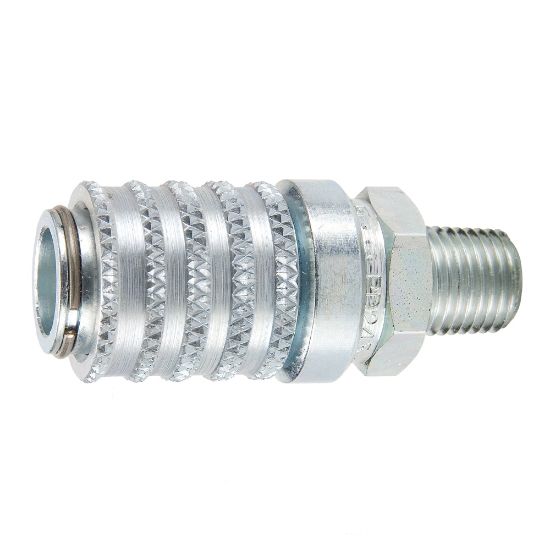

PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD243
Price: 60.72 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:

11 in stock

COLUMBIA, MO	3
Peoria, IL	3
Olivette, MO	2
Springfield, MO	2
WICHITA, KS	1

Partner Available:

128 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD243

$60.72/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Connection Type	Male NPTF
Coupling Half	Female Coupler	Application	Diagnostic
Specifications Met	SAE J1502 / ISO 15171-1	Flow Rate	0.8 Gal/min
Product Type	Push to connect	Minimum Operating Temperature	-40 °F
Hex Size	0.81 inch	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Seal Material	Nitrile
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Body Size	1/8 inch	Maximum Operating Pressure	6000 psi
Body Material	Steel
