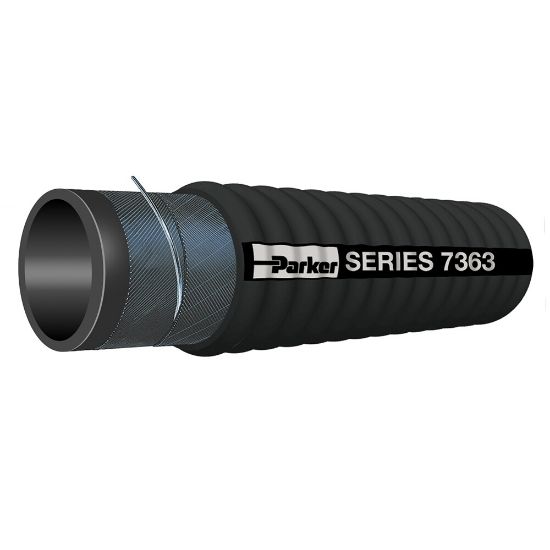

7363-3000 - SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363

Super-Flex Large Diameter Corrugated Vacuum Hose incorporates a 3/16” thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 160°F and 100 psi, Series 7363

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	44 in stock

SKU 7363-3000

$59.20/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	100
Hose I.D. (inch)	3	Division	Hose Products Division
Application	Material Handling	Media	Dry Abrasive Powders (Debris)
Maximum Operating Pressure	100 psi	Maximum Operating Temperature	160 °F
Minimum Operating Temperature	-40 °F	Specifications Met	n/a
Weight	2.35 lb/ft	Outside Diameter	3.800 inch
Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend	Inside Diameter	3 inch
Minimum Bend Radius	9 inch	Vacuum Pressure Rating	Full
Hose Inner Tube Material	Black	Hose Reinforcement Material	3 Plies of Textile with Wire Helix
Cover Color	Black	Design Factor	3:1
Package Type	Coil	Length per Package	100 ft
Cover Structure	Wrapped
