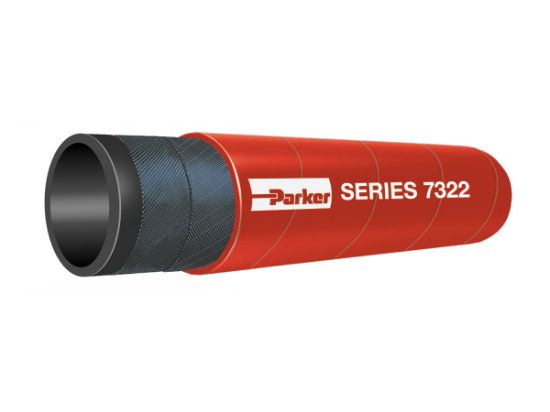

7322-150200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	110 in stock

SKU 7322-150200

$20.53/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	1-1/2	Outside Diameter	50.4 mm
Maximum Operating Pressure	13.8 bar	Inside Diameter	1-1/2 inch
Nominal Hose Inside Diameter	40 mm	Specifications Met	n/a
Application	Multipurpose	Weight	0.82 lb/ft
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Media	Water
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Size	-24	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	2 Plies of Textile
Minimum Bend Radius	8.5 inch	Package Type	Coil
Inner Diameter	1.5 Inch	Working Pressure	200 PSI (14 bar)
Mating Fitting Series	43	Pkg Qty/UOM	200 FT
Pkg Qty	200	Color	Red
UOM	FT	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter Inch/mm	Inch	Inner Diameter	1.5 Inch
Color	Red	Hose Pressure Range	Low
Mating End Fitting Series	43	Series	7322
Trade Name	SUPER-LOK GS™	Hose Category	General Service Air & Water

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
