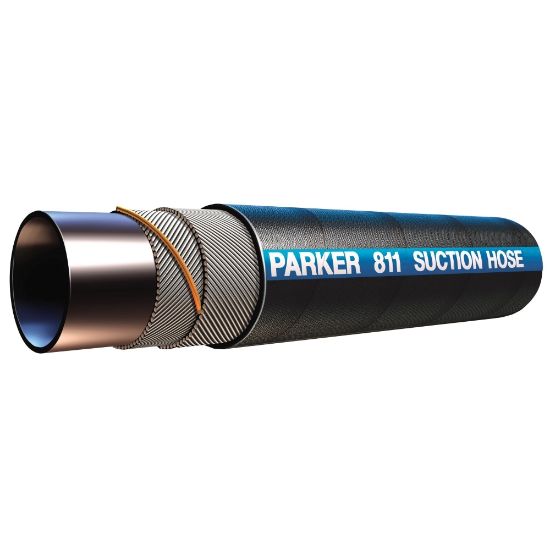

811-20 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: 811-20 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-20
Price: 23.07 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:

295 in stock

Joplin, MO	96
Springfield, MO	81
Olivette, MO	55
Wichita, KS	31
Kansas City, KS	28
TOPEKA, KS	3

Partner Available:

4299 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 811-20

$23.07/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Inner Tube Material	Synthetic Rubber	Compatible Fitting	43 Series
Maximum Operating Temperature	100 °C	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Cover Material	Synthetic Rubber
Minimum Bend Radius	102 mm	Hose Cover Type	Standard Cover
Media	Lubricants	Nominal Hose Inside Diameter	31 mm
Specifications Met	SAE 100R4	Application	Lubricating Oils
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix	Weight	0.82 lb/ft
Maximum Operating Pressure	50 psi (w/ 88HC)	Vacuum Pressure Rating	25 Inch-Hg
Outside Diameter	45 mm	Inside Diameter	31.8 mm
