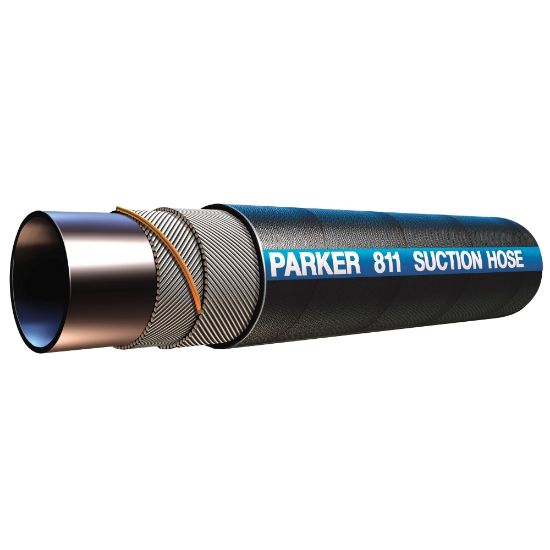

811-16 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: 811-16 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-16
Price: 16.31 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:

515 in stock

Springfield, MO	211
Olivette, MO	115
Wichita, KS	105
Kansas City, KS	54
Joplin, MO	29

Partner Available:

4918 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 811-16

$16.31/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Maximum Operating Pressure	17 bar (w/ 81/88DB)	Nominal Hose Inside Diameter	25 mm
Inside Diameter	1 inch	Outside Diameter	38 mm
Application	Petroleum Base Hydraulic Fluids	Specifications Met	SAE 100R4
Division	Hose Products Division	Vacuum Pressure Rating	84 kPa
Weight	0.96 kg/m	Media	Petroleum Hydraulic Fluids
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Synthetic Rubber
Compatible Fitting	88 Series	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix	Minimum Bend Radius	3 inch
Cover Material	Synthetic Rubber	Hose Cover Type	Standard Cover
