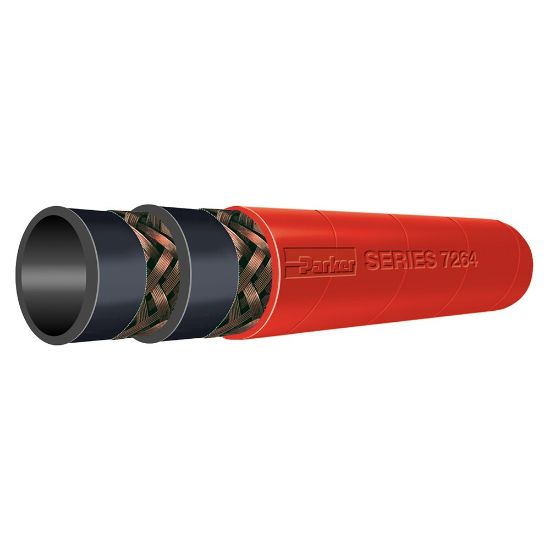

7264-752A - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 7264-752A

$12.44/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	3/4	Packaging	Reel
Application	Processing	Hose Reinforcement Material	Multiple Braids of Wire
Specifications Met	ISO 6134, Type 2	Cover Structure	Perforated
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	241 mm	Weight	0.98 kg/m
Maximum Operating Pressure	17 bar (Superheated Steam)	Inside Diameter	19.1 mm
Outside Diameter	34.1 mm	Nominal Hose Inside Diameter	20 mm
Maximum Operating Temperature	208 °C (Saturated Steam)	Division	Hose Products Division
Size	-12	Media	Steam
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
