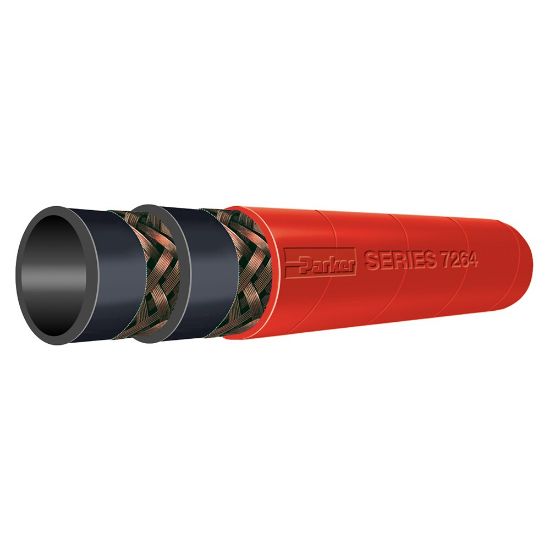

7264-1002 - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 7264-1002

$15.69/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	1	Packaging	Carton
Weight	0.85 lb/ft	Inside Diameter	1 inch
Maximum Operating Pressure	17 bar (Superheated Steam)	Outside Diameter	40.5 mm
Size	-16	Maximum Operating Temperature	450 °F (Superheated Steam)
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Division	Hose Products Division
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Media	Steam
Application	Refineries	Nominal Hose Inside Diameter	25 mm
Minimum Operating Temperature	-40 °C	Minimum Bend Radius	12 inch
Specifications Met	ISO 6134, Type 2	Hose Reinforcement Material	Multiple Braids of Wire
Cover Structure	Perforated

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
