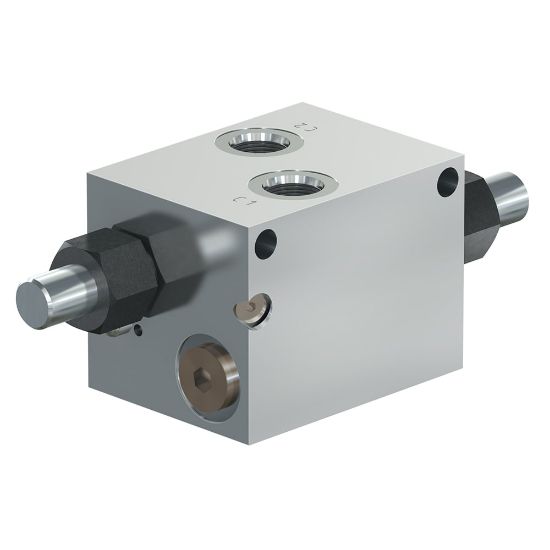

MHB-030-LEAE-52E - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MHB-030-LEAE-52E

$373.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR
Port Size	SAE-8	Mounting Type	Single Inline
Holding Pressure	1500 PSI, 103.4 BAR	Pilot Pressure Ratio	6:1
Maximum Flow Rate	30 GAL/MIN, 112.5 L/MIN	Adjustment Mechanism	Tamper Resistant
Cavity Size	N/A	Minimum Operating Temperature	-34 °C
Mounting Type	Single Inline	Port Size	SAE-8
Flow Direction	Cylinder port C, Valve port V, Pilot port P	Operating Temperature	-34 to +121 °C
Maximum Operating Pressure	210 bar	Pilot Location	External
Actuation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	2.5 lb	Pressure Control Range	34.5-103.4 bar
Holding Pressure	1500 psi	Pressure Control Sensitivity	N/A bar
Flow Rate	30 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Cartridge Systems Division	Pilot Pressure Ratio	6:1
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Systems Division
Installation Torque	N/A lb-ft	Body Material	Aluminum
Function	Counterbalance Valve	Maximum Inlet Pressure Rating	210 bar
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	30 Gal/min
Seal Material	Nitrile	Leak Rate	5 @ 80% of setting drops/min
Maximum Operating Temperature	+250 °F
