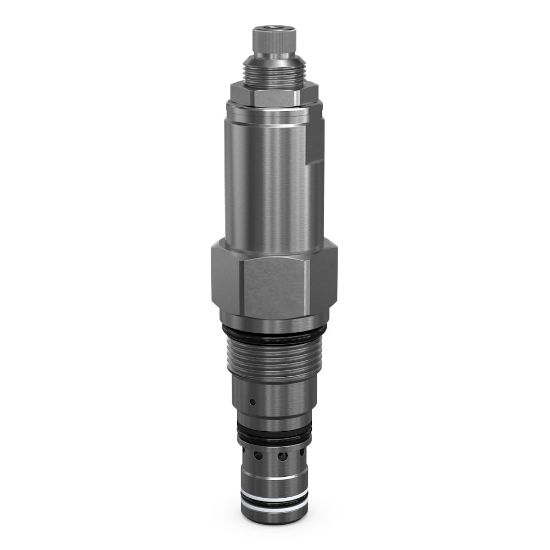

CB101AS10V - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CB101AS10V

$125.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Maximum Flow Rate	12 GAL/MIN, 45 L/MIN
Holding Pressure	1000 PSI, 69 BAR	Pilot Pressure Ratio	3:1
Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR	Holding Pressure	69 bar
Mounting Type	Threaded Cartridge Valve	Pressure Control Range	500 to 1500 psi
Flow Rate	12 Gal/min	Port Thread Size	N/A
Operating Temperature	-26 to 204 °C	Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13
Actuation Type	Pilot Operated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pressure Control Sensitivity	n/a	Pilot Location	External
Body Material	n/a	Installation Torque	22 Nm
Weight	0.5 lb	Maximum Operating Pressure	350 bar
Pilot Pressure Ratio	3:1	Division	Hydraulic Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Leak Rate	5
Maximum Operating Temperature	400 °F	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	12 Gal/min	Maximum Inlet Pressure Rating	5500 psi
Valve Material	Steel	Seal Material	Fluorocarbon
Port Size	n/a	Function	Counterbalance Valve
Flow Direction	Pilot port 3	Adjustment Mechanism	Screw
Cavity Size	C10-3	Minimum Operating Temperature	-26 °C
