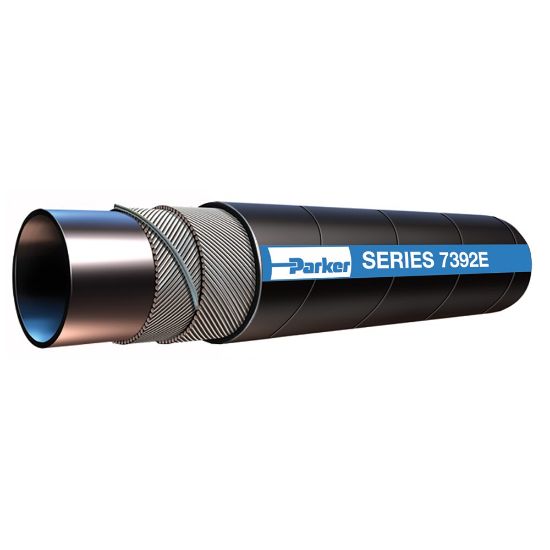

7392E-2500 - Standard Duty Water Suction Hose, Series 7392E

Standard Duty Water Suction Hose is designed for water transfer in applications to 180°F and 150 psi, Series 7392E

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	379 in stock

SKU 7392E-2500

$18.52/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2-1/2
Specifications Met	n/a	Application	Water
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	203 mm
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Vacuum Pressure Rating	29 Inch-Hg
Cover Color	Black	Maximum Operating Pressure	150 psi
Weight	2.16 kg/m	Inside Diameter	2-1/2 inch
Outside Diameter	74.9 mm	Maximum Operating Temperature	82 °C
Hose Inner Tube Material	Synthetic Rubber	Division	Hose Products Division
Cover Material	Synthetic Rubber	Media	Water
Design Factor	n/a
