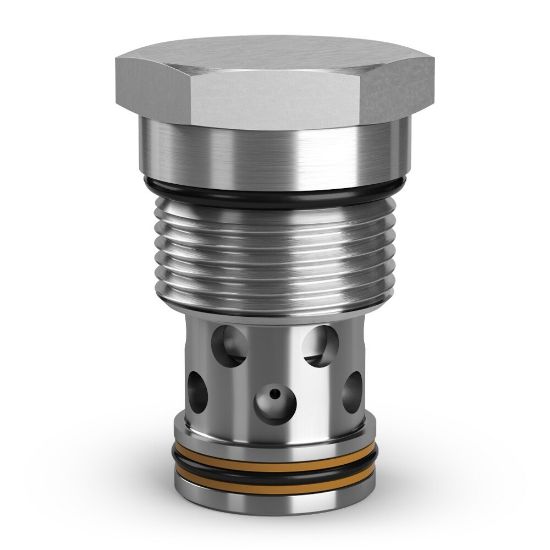

D06B2P4.1N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU D06B2P4.1N

$108.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	60 PSI, 4.1 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Maximum Flow Rate	132	Division	Hydraulic Valve Systems Division
Valve Material	Steel (all parts)	Maximum Operating Temperature	250
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	For Fluid Type	Mineral-based Hydraulic Fluids
Seal Material	Nitrile	Maximum Inlet Pressure Rating	6000
Cracking Pressure	60	Function	Standard Check
Flow Direction	2-1 Checked	Minimum Operating Temperature	-30
Cavity Size	C16-2	Flow Rate	74 gal/min @ 100 Psi (7 bar) Nominal
Maximum Operating Pressure	6000	Operating Temperature	-30 to 250
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13	Weight	0.6
Installation Torque	74	Body Material	n/a
Division	Hydraulic Valve Systems Division Europe
